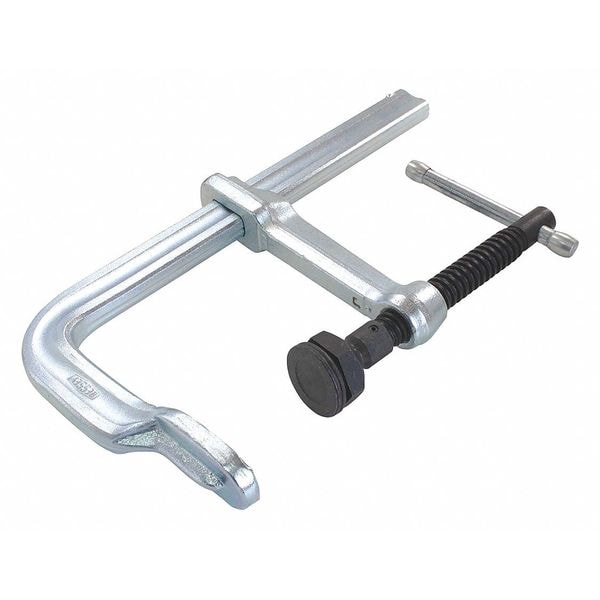

7 1/2 in Bar Clamp, Forged Steel Handle and 4 3/4 in Throat Depth
| Handle Material | Forged Steel |
|---|---|
| Throat Depth (In.) | 4-3/4 |
| Application | Industrial |
| Spindle Dia. (In.) | 0.775 |
| Item | Bar Clamp |
| Nominal Clamping Pressure | 2,660 lb |
| Max. Jaw Opening (In.) | 7-1/2 |
| Swivel Type | Heavy Duty |
| Opening (In.) | 7-1/2 |
| Bar Material | Steel |
| Nominal Rail Size (In.) | 1-3/16 x 19/32 |
| Pad Type | Heavy Duty |
| Type | ClassiX(R) - Heavy Duty Pad |
| Spindle Diameter1 | 13/16 in |
| Clamping Force1 | 2,660 lb |
| Jaw Pad Type | Swivel |
| Throat Depth1 | 4-3/4 in |
| Clamping Capacity1 | 7 in |
| Package Quantity | 1 |
