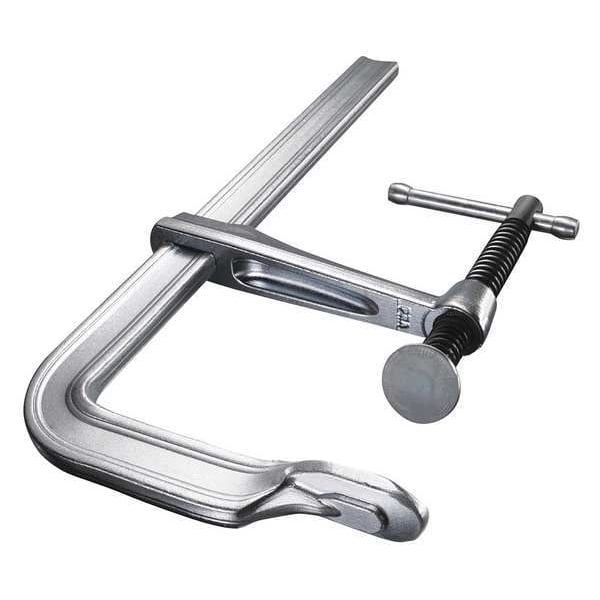

8 in Bar Clamp, Forged Steel Handle and 5 1/2 in Throat Depth
| Handle Material | Forged Steel |
|---|---|
| Throat Depth (In.) | 5-1/2 |
| Application | Industrial |
| Includes | Patented rail, Profile, Replaceable Swivel Pads |
| Max. Jaw Opening (In.) | 8 |
| Spindle Dia. (In.) | 0.7 |
| Type | Light to Medium Duty, F-Style Sliding Arm |
| Nominal Rail Size (In.) | 1-3/32 x 7/16 |
| Swivel Type | Replaceable |
| Opening (In.) | 8 |
| Bar Material | Steel |
| Item | Bar Clamp |
| Pad Type | Replaceable, Standard, Swivel |
| Nominal Clamping Pressure | 1,320 lb |
| Swivel Pad (In.) | 1-1/2 |
| Clamping Capacity1 | 8 in |
| Clamping Force1 | 1,320 lb |
| Spindle Diameter1 | 3/4 in |
| Jaw Pad Type | Standard |
| Jaw Pad Width | 1-1/2 in |
| Throat Depth1 | 5-1/2 in |
| Package Quantity | 1 |
