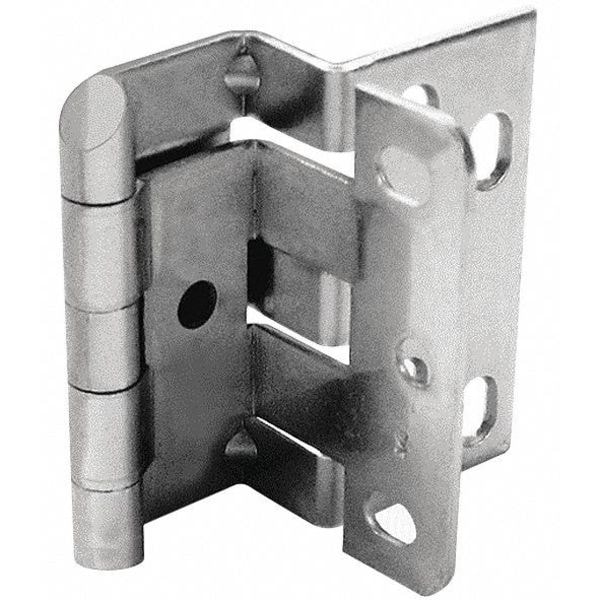

Concealed Hinge, Steel, Screw-On Mounting, 3 in Leaf W x 2 3/4 in Leaf H, Stainless steel
| Corners | Square |
|---|---|
| Door Leaf Height | 2 in |
| Door Leaf Thickness | 0.088 in |
| Door Leaf Width | 1 in |
| Finish | Stainless steel |
| Holes per Leaf | 4 |
| Load Capacity | 25 lb |
| Material | Steel |
| Mounting | Screw-On |
| Pin Dia. | 1/4 in |
| Range of Motion | 180 deg |
| Frame Leaf Width | 3 in |
| Pin Type | Barrel |
| Door Thickness | 3/4 in |
| Pin Material | Stainless Steel |
| Bearing Type | Plain |
| Holes | With |
| Width | 3 in |
| Ligature Resistant | Yes |
| Frame Leaf Length | 3 in |
| Stanley EDP Number | 351616 |
| Color | Silver |
| Door Leaf Length | 2 in |
| Stanley Class Number | 1,592 |
| Hardware | Yes |
| Item | Concealed Hinge |
| Standards | ANSI, BHMA |
| Height | 1-1/2 in |
| Leaf Thickness | 0.088 in |
| Frame Leaf Height | 2-3/4 in |
| Frame Leaf Thickness | 0.088 in |
| Range of Motion - Maximum | 180 deg |
| Includes Hardware | Hardware Included |
| Number of Holes per Leaf | 4 |
| Door Thickness - Maximum | 3/4 in |
| Corner Type | Square |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Ligature-Resistant | Ligature-Resistant |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 2 |
