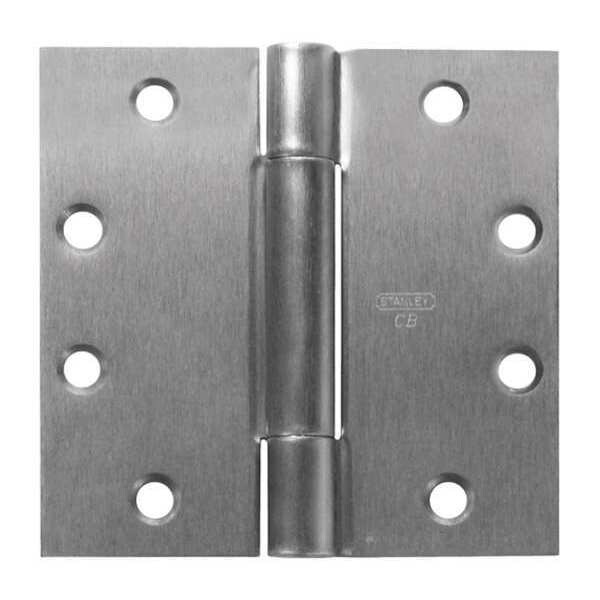

Electrified Hinge, Steel, Full Mortise Mounting, 1 13/16 in Leaf W x 4 1/2 in Leaf H, Satin Chrome
| Corners | Round |
|---|---|
| Door Leaf Height | 4-1/2 in |
| Door Leaf Thickness | 0.134 in |
| Door Leaf Width | 1-13/16 in |
| Finish | Satin Chrome |
| Holes per Leaf | 4 |
| Load Capacity | 75 lb |
| Material | Steel |
| Mounting | Full Mortise |
| Orientation | Right Hand |
| Pin Dia. | 1/2 in |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/8 in |
| Hardware | Not included |
| Item | Electrified Hinge |
| Frame Leaf Thickness | 0.134 in |
| Ligature Resistant | No |
| Frame Leaf Height | 4-1/2 in |
| Pin Type | Nonremovable |
| Bearing Type | Concealed |
| Standards | ANSI/BHMA |
| Frame Leaf Width | 1-13/16 in |
| Pin Material | Zinc Alloy |
| Holes | With |
| Number of Holes per Leaf | 4 |
| Includes Hardware | Hardware Not Included |
| Pin Diameter | 1/2 in |
| Range of Motion - Maximum | 180 deg |
| Mounting Style | Full Mortise |
| Hinge Type | Butt |
| Includes Holes | Holes Included |
| Corner Type | Round |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
