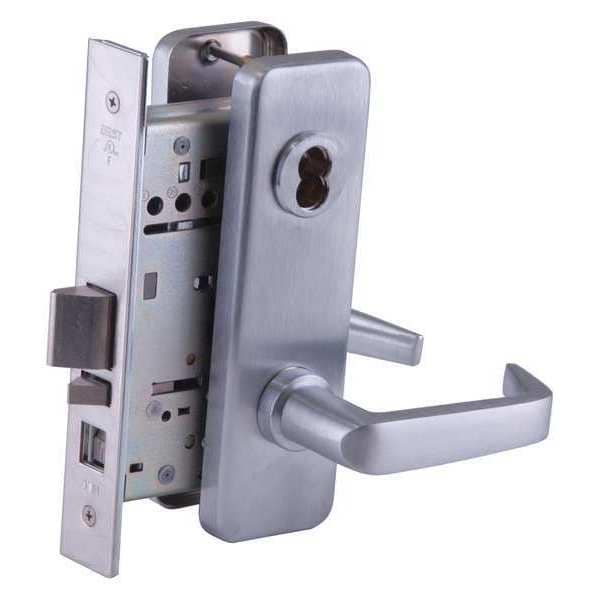

Mortise Lockset 40H Escutcheon, Series 40H, Grd. 1, Entrance
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Office |
| Lockset Grade | Grade 1 |
| Style | 40H Escutcheon |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| Number of Keys | 0 |
| Backset | 2-3/4 in |
| Strike Dim. | 4 7/8 in x 1 1/4 in x 3/32 in |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Strike Type | ANSI |
| Includes | 2 9/32 in W x 7 1/2 in H J Escutcheon, Single Key with Latch |
| Item | Door Lockset |
| Series | 40H Series |
| For Use With | Hollow Metal and Wood Doors |
| Mortise/Cylindrical | Mortise |
| Ligature Resistant | No |
| ADA Compliant | Yes |
| Location Type | Commercial |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Lockset Fire Rating | 3 hr |
| Handle Type | Contour/Angle Return |
| Voltage | Not Applicable |
| Number of Pins | 7 |
| Key Material | Not Applicable |
| Case Material | Steel, Zinc |
| Finish | Satin Chrome |
| Function | Entrance, Office |
| Grade | 1 |
| Fire Rated | 3 hr. |
| Pins | 0 |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Hand Orientation | Non-Handed |
| Door Thickness - Minimum | 1-3/4 in |
| Lockset Style | 40H Escutcheon |
| Lockset Type | Mechanical |
| Ligature-Resistant | Not Ligature-Resistant |
| Visual Indicator Location | Not Applicable |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Performance Grade | 1 |
| Door Thickness - Maximum | 5 in |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Locking/Unlocking Access - Outside | Keyway |
| Strike Plate Width | 1/8 in |
| Fire Rating | 3 hr |
| Application | Commercial, Industrial |
| ANSI Grade | 1 |
| Strike Plate Height | 4-7/8 in |
| Includes Hardware | Hardware Included |
| Strike Plate Thickness | 1 1/4 in |
| Lockset Function ANSI Code | F04 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
