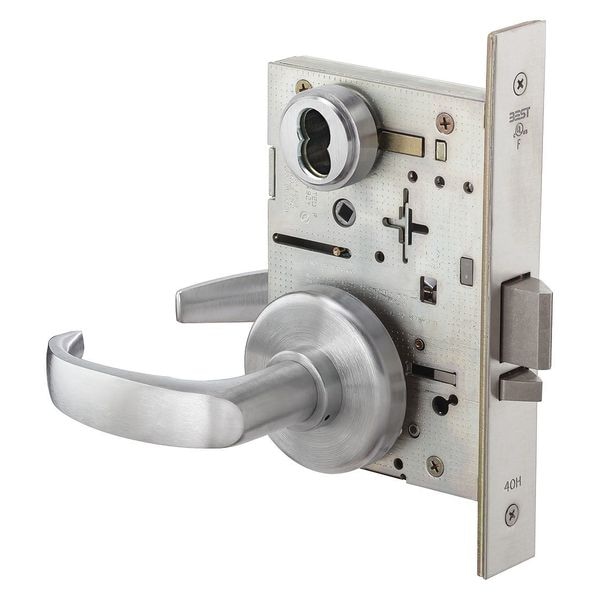

Mortise Lockset, Lever, 40H Rose, Ser. 40H, Grd. 1, Entrance
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Office |
| Lockset Grade | Grade 1 |
| Style | 40H Rose |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| Includes | H Rose Flat with Round Edge, Inside Thumbturn, Single Key with Latch |
| For Use With | Hollow Metal and Wood Doors |
| Lockset Fire Rating | 3 hr |
| Strike Dim. | 4 7/8 in x 1 1/4 in x 3/32 in |
| Strike Type | ANSI |
| Location Type | Commercial |
| Item | Door Lockset |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Mortise/Cylindrical | Mortise |
| Ligature Resistant | No |
| Number of Keys | 0 |
| ADA Compliant | Yes |
| Backset | 2-3/4 in |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Series | 40H Series |
| Pins | 0 |
| Case Material | Steel, Zinc |
| Grade | 1 |
| Fire Rated | 3 hr. |
| Finish | Satin Chrome |
| Number of Pins | 7 |
| Key Material | Not Applicable |
| Handle Type | Curved Return |
| Voltage | Not Applicable |
| Function | Entrance, Office |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Lockset Function ANSI Code | F04 |
| Visual Indicator Location | Not Applicable |
| Strike Plate Height | 4-7/8 in |
| Includes Hardware | Hardware Included |
| Performance Grade | 1 |
| Locking/Unlocking Access - Outside | Keyway |
| Application | Commercial, Industrial |
| Hand Orientation | Non-Handed |
| Strike Plate Width | 1/8 in |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Door Thickness - Minimum | 1-3/4 in |
| Lockset Type | Mechanical |
| Fire Rating | 3 hr |
| ANSI Grade | 1 |
| Strike Plate Thickness | 1 1/4 in |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Ligature-Resistant | Not Ligature-Resistant |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Maximum | 5 in |
| Lockset Style | 40H Rose |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
