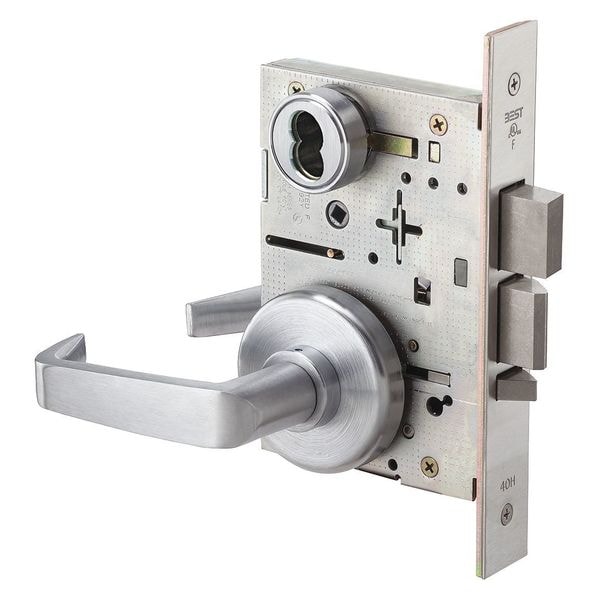

Mortise Lockset, Lever, 40H Rose, Ser. 40H, Grd. 1, Entrance
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Office |
| Lockset Grade | Grade 1 |
| Style | 40H Rose |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Not Keyed |
| Strike Type | ANSI |
| Number of Keys | 0 |
| Item | Door Lockset |
| Backset | 2-3/4 in |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Series | 40H Series |
| ADA Compliant | Yes |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Lockset Fire Rating | 3 hr |
| Location Type | Commercial |
| Mortise/Cylindrical | Mortise |
| Ligature Resistant | No |
| Strike Dim. | 4 7/8 in x 1 1/4 in x 3/32 in |
| For Use With | Hollow Metal and Wood Doors |
| Includes | 2 3/4 in Dia H Rose Flat with Round Edge, Inside Thumbturn, Single Key with Latch |
| Voltage | Not Applicable |
| Finish | Satin Chrome |
| Function | Entrance, Office |
| Key Material | Not Applicable |
| Handle Type | Contour/Angle Return |
| Number of Pins | 7 |
| Pins | 0 |
| Fire Rated | 3 hr. |
| Grade | 1 |
| Case Material | Steel, Zinc |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Door Thickness - Maximum | 5 in |
| Door Thickness - Minimum | 1-3/4 in |
| Strike Plate Thickness | 1 1/4 in |
| Ligature-Resistant | Not Ligature-Resistant |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Lockset Style | 40H Rose |
| Lockset Function ANSI Code | F04 |
| Includes Hardware | Hardware Included |
| Strike Plate Width | 1/8 in |
| Locking/Unlocking Access - Outside | Keyway |
| Performance Grade | 1 |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Application | Commercial, Industrial |
| Lockset Type | Mechanical |
| Strike Plate Height | 4-7/8 in |
| Hand Orientation | Non-Handed |
| ANSI Grade | 1 |
| Fire Rating | 3 hr |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Visual Indicator Location | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
