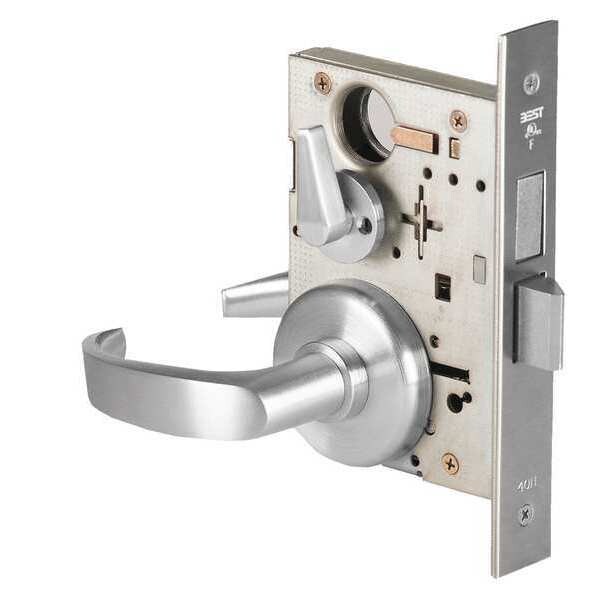

Mortise Lockset, Lever, 40H Rose, Series 40H, Grd. 1, Privacy
| Item | Door Lockset |
|---|---|
| Lockset Function | Privacy |
| Location Type | Commercial |
| Electrical/Mechanical | Mechanical |
| Grade | 1 |
| Finish | Satin Stainless |
| Series | 40H Series |
| Required Door Thickness | 1-3/4 in |
| Backset | 2 3/4 in |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Includes | Hardware |
| Number of Keys | 0 |
| Lockset Finish | Satin Stainless Steel |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| ADA Compliant | Yes |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Mortise / Cylindrical | Mortise |
| Strike Type | ANSI |
| Ligature Resistant | No |
| Style | 40H Rose |
| Lockset Fire Rating | 3 hr |
| Mortise/Cylindrical | Mortise |
| Lockset Grade | 1 |
| For Use With | Hollow Metal and Wood Doors |
| Lockset Handle Type | Lever |
| Fire Rated | 3 hr. |
| Key Material | Not Applicable |
| Case Material | Steel, Zinc |
| Keyway Type | None |
| Handle Type | Curved, No Return |
| Pins | 0 |
| Function | Privacy |
| Voltage | Not Applicable |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Fire Rating | 3 hr |
| Door Thickness - Maximum | 5 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Application | Commercial, Industrial |
| Performance Grade | 1 |
| Lockset Function ANSI Code | F19 |
| ANSI Grade | 1 |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Strike Plate Width | 1/8 in |
| Strike Plate Thickness | 1 1/4 in |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Includes Hardware | Hardware Included |
| Visual Indicator Location | Not Applicable |
| Lockset Style | 40H Rose |
| Lockset Type | Mechanical |
| Strike Plate Height | 4-7/8 in |
| Door Thickness - Minimum | 1-3/4 in |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Hand Orientation | Non-Handed |
| Locking/Unlocking Access - Outside | Coin Turn |
| Locking/Unlocking Access - Inside | Thumb Turn |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
