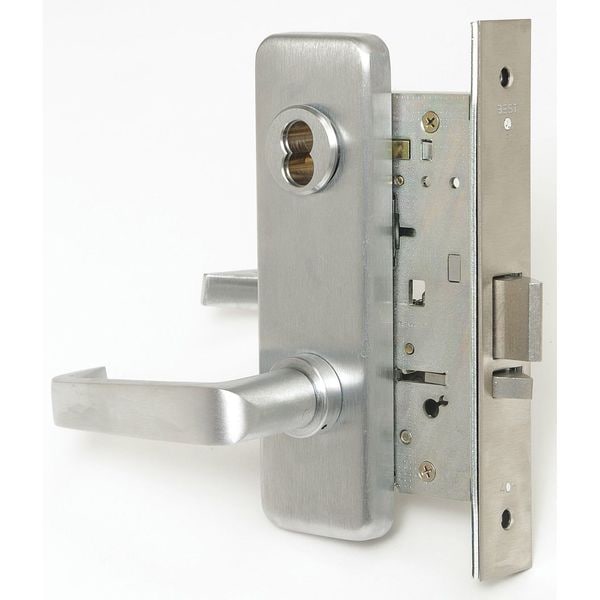

Mortise Lockset, Lever, 40H Ser., 40H Escutcheon, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware, with The Request to Exit Option (RQE) |
| Style | Escutcheon |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Mortise/Cylindrical | Mortise |
| Required Door Thickness | 1-3/4 in |
| Lockset Handle Type | Lever |
| Lockset Fire Rating | 3 hr |
| Backset | 2 3/4 in |
| Mortise / Cylindrical | Mortise |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| ADA Compliant | Yes |
| Number of Keys | 0 |
| Strike Type | ANSI |
| Ligature Resistant | No |
| Voltage | Not Applicable |
| Electrical/Mechanical | Electrical |
| Lockset Finish | Satin Chrome |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Lockset Grade | 1 |
| Lockset Function | Storeroom |
| Location Type | Commercial |
| Grade | 1 |
| Fire Rated | 3 hr. |
| Number of Pins | 7 |
| Handle Type | Contour/Angle Return |
| Function | Fail Secure, Storeroom |
| Keyway Type | None |
| Case Material | Steel Zinc |
| Pins | 0 |
| Key Material | Not Applicable |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Hand Orientation | Non-Handed |
| Strike Plate Height | 4-7/8 in |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Strike Plate Thickness | 1-1/4 in |
| Includes Hardware | Hardware Included |
| Door Thickness - Minimum | 1-3/4 in |
| Door Thickness - Maximum | 5 in |
| ANSI Grade | 1 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Lockset Type | Mechanical |
| Performance Grade | 1 |
| Visual Indicator Location | Not Applicable |
| Lockset Style | 40H Escutcheon |
| Ligature-Resistant | Not Ligature-Resistant |
| Fire Rating | 3 hr |
| Locking/Unlocking Access - Outside | Keyway |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
