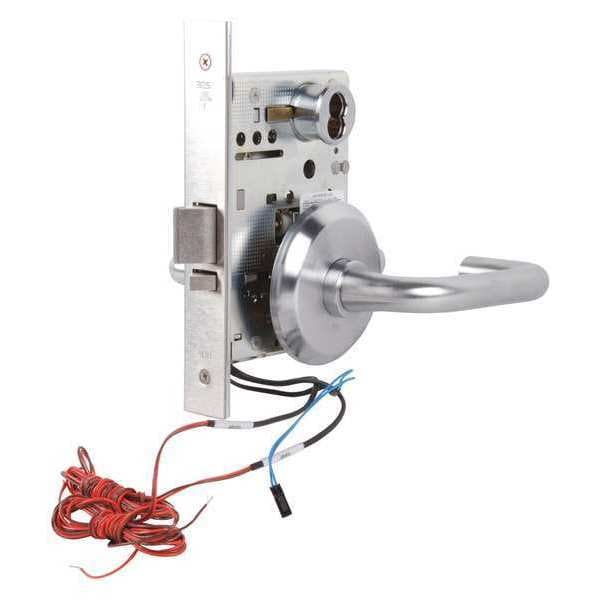

Mortise Lockset, Lever, 40H Ser., 40H Escutcheon, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | 2 1/8 in W x 8 in H M Escutcheon |
| Style | Escutcheon |
| Series | 40H Series |
| Application | Commercial, Industrial |
| Features | Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation |
| Lockset Handle Type | Lever |
| Lockset Function | Storeroom |
| ADA Compliant | Yes |
| Voltage | Not Applicable |
| Required Door Thickness | 1-3/4 in |
| Lockset Grade | 1 |
| Lockset Finish | Satin Chrome |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Electrical/Mechanical | Electrical |
| Ligature Resistant | No |
| Lockset Fire Rating | 3 hr |
| Mortise/Cylindrical | Mortise |
| Backset | 2 3/4 in |
| Number of Keys | 0 |
| Mortise / Cylindrical | Mortise |
| Location Type | Commercial |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Strike Type | ANSI |
| Pins | 0 |
| Handle Type | Contour/Angle Return |
| Number of Pins | 7 |
| Grade | 1 |
| Case Material | Steel Zinc |
| Function | Fail Secure, Storeroom |
| Key Material | Not Applicable |
| Fire Rated | 3 hr. |
| Keyway Type | None |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Lockset Style | 40H Escutcheon |
| Includes Hardware | Hardware Included |
| Lockset Type | Mechanical |
| Locking/Unlocking Access - Outside | Keyway |
| Door Thickness - Maximum | 5 in |
| Fire Rating | 3 hr |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Door Thickness - Minimum | 1-3/4 in |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Strike Plate Thickness | 1-1/4 in |
| Hand Orientation | Non-Handed |
| ANSI Grade | 1 |
| Visual Indicator Location | Not Applicable |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Strike Plate Height | 4-7/8 in |
| Performance Grade | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
