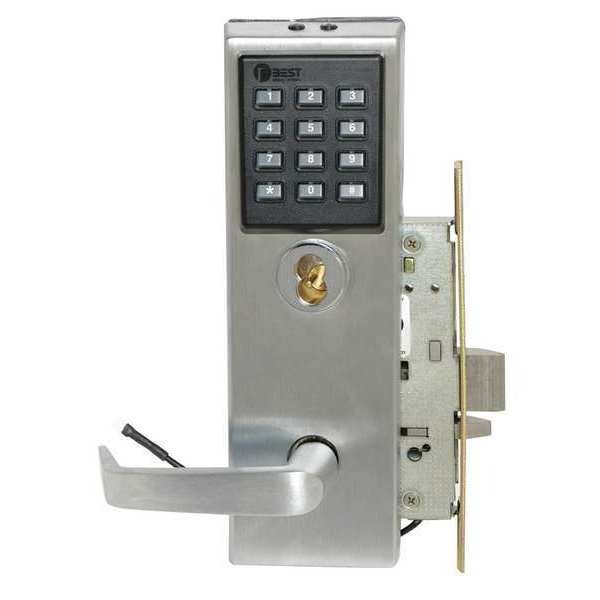

Mortise Lockset, Lever, 40HZ Ser., 40HZ Escutcheon, Store, Elec.
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Hardware |
| Style | Escutcheon |
| Series | 40HZ Series |
| Application | Commercial, Industrial |
| Features | Mechanical Key Override and Variable Keypad Pin Length From 3 to 6 Digits. Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength |
| Mortise/Cylindrical | Mortise |
| Ligature Resistant | No |
| Location Type | Commercial |
| Lockset Finish | Satin Chrome |
| Mortise / Cylindrical | Mortise |
| Lockset Fire Rating | 3 hr |
| Number of Keys | 0 |
| Strike Type | ANSI |
| Standards | ANSI A117.1, ANSI A156.13, BHMA, cULus Listed |
| Voltage | Not Applicable |
| Lockset Function | Storeroom |
| Required Door Thickness | 1-3/4 in |
| Backset | 2 3/4 in |
| ADA Compliant | Yes |
| Strike Dim. | 4-7/8 in x 1-1/4 in x 3/32 in |
| Lockset Grade | 1 |
| Lockset Handle Type | Lever |
| Electrical/Mechanical | Electrical |
| Keyway Type | None |
| Fire Rated | 3 hr. |
| Handle Type | Contour/Angle Return |
| Function | Storeroom |
| Case Material | Steel Zinc |
| Grade | 1 |
| Number of Pins | 7 |
| Pins | 0 |
| Key Material | Not Applicable |
| Key Type | Not Keyed |
| Visual Indicator Message | No Message |
| Strike Plate Width | 1/8 in |
| Visual Indicator Location | Not Applicable |
| Includes Hardware | Hardware Included |
| Strike Plate Height | 4-7/8 in |
| Door Thickness - Maximum | 5 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Ligature-Resistant | Not Ligature-Resistant |
| Strike Plate Thickness | 1-1/4 in |
| ANSI Grade | 1 |
| Door Thickness - Minimum | 1-3/4 in |
| Fire Rating | 3 hr |
| Performance Grade | 1 |
| Lockset Style | 40HZ Escutcheon |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Knob/Handle Material | Bronze, Brass, Stainless Steel |
| Lockset Type | Mechanical |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
