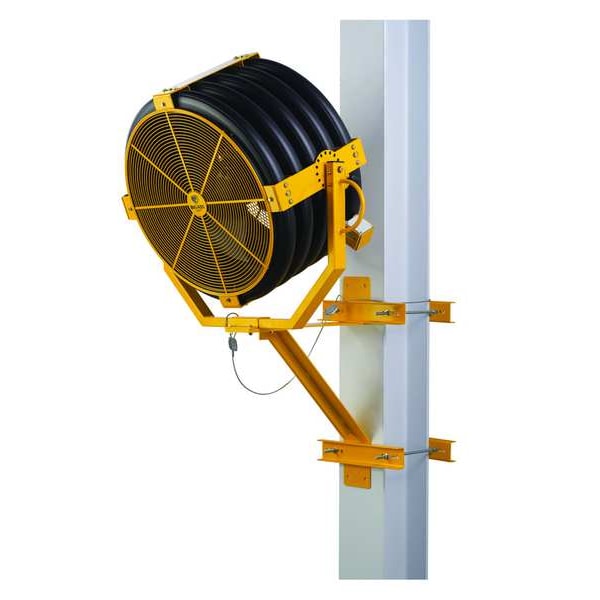

Yellow Jacket, 30-in Column Mount Fan
| NEMA Plug Configuration | 5-15P |
|---|---|
| Air Velocity @ 80 Ft. | 140 fpm |
| Fan Mounting Location | Wall, I-Beam |
| Wire Guard Finish | Powder Coated |
| Blade Material | Aluminum |
| Speed Controllable - Fans | Yes |
| Fan Power Source | Hardwired |
| Fan Accessory Color | Yellow |
| Motor Insulation | Class B |
| Number of Blades | 3 |
| Bearing Type | Double Shielded Ball |
| Assembly Required | Yes |
| Wheel Material | Rubber |
| Item | High Visibility Industrial Fan |
| Amps | 7.9-10.5 |
| Fan Housing Material | Steel |
| Wheel Dia. | 8 in |
| Voltage | 110 to 125V AC |
| Fan Blade Color | Black |
| Hz | 50/60 Hz |
| Motor Enclosure | Open Dripproof |
| Thermal Protection | Manual Reset |
| Oscillation | Non-Oscillating |
| Color | Yellow |
| Air Velocity @ 40 Ft. | 280 fpm |
| Number of Conductors | 0 |
| Fan Cord Length | 10 ft |
| Wheeled Base | Stationary |
| Blade Material - Fans | Plastic |
| RPM | 1,317 |
| Air Velocity @ 10 Ft. | 590 fpm |
| Number of Speeds | Variable |
| Assembled | No |
| Guard Material | Steel |
| Fan Accessory Style | High Visibility |
| Oscillating | No |
| Battery Operated - Fans | No |
| Air Velocity @ 60 Ft. | 160 fpm |
| Blade Diameter | 30 in |
| Phase | 1 |
| Motor Design | ECM |
| Application | Variable |
| Max. Ambient Temp. | 122 deg F |
| Environmental Applications | Industrial |
| Standards | UL, ETL |
| Air Flow | 6,919 |
| Fan Accessory Finish | Powder Coated |
| Sound Level | 80.2 dBA |
| Includes | Remote Mounted or Onboard Speed Controller |
| Drive Type | Direct Drive |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
