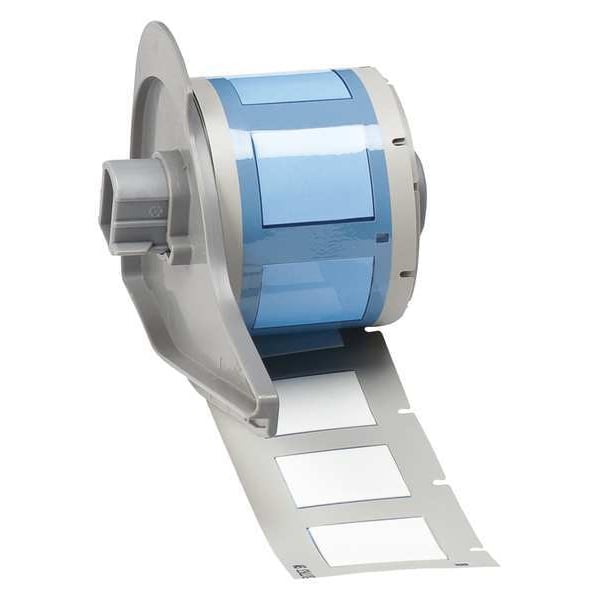

1-1/64" x 27/32" White Irradiated Heat Shrink Polyolefin Wire Marker Sleeves
| Color | White |
|---|---|
| Printer Series Compatibility | BMP71 |
| Height | 27/32 in |
| Item | Precut Label Roll |
| Legend | Blank |
| Material | Irradiated Heat Shrink Polyolefin |
| Width | 1-1/64 in |
| Temp. Range | -67 to 257 deg F |

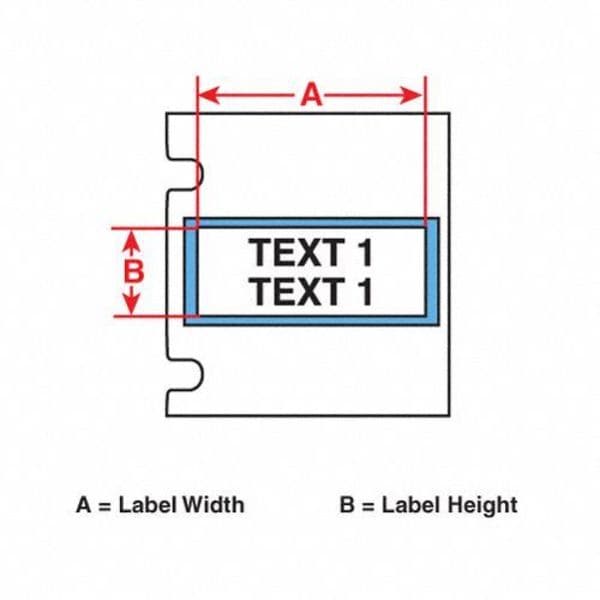

| Label Width | 1-11/64 in |
| Label Height | 27/32 in |
| Min. Wire Size | 0.187 in |
| For Use With | BMP71 Printer and Ribbon Mfr. No. M71-R4300 |
| Standards | ASTM D 2671, ASTM E 162, ASTM E 662, ASTM G 155, MIL-STD-202, SAE-AMS-DTL-23053, SAE-AS-81531, UL Recognized |
| Shrink Ratio | 3:1 |
| Labels per Roll | 100 |
| Max. Wire Size | 0.45 in |
| Application | Electrical Labeling, Wire and Cable Labeling |
| Label Material | Polyolefin |
| Adhesive | Non-Adhesive |
| Minimum Service Temperature | -67 deg F |
| Maximum Service Temperature | 257 deg F |
| Label Attachment Style | Heat Shrink Sleeve |
| Maximum Wire Gauge | 1 AWG |
| Labels per Row | 1 |
| Label Media Format | Precut Roll |
| Minimum Wire Gauge | 8 AWG |
| Maximum Wire Diameter | 0.45 in |
| Adhesive Material | Not Applicable |
| Resistance Properties | Chemical-Resistant, Cold-Resistant, Corrosion-Resistant, Fade-Resistant, Flame-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant |
| Compatible Mfr Part Number | BMP71 |
| For Print Method | Thermal-Transfer |
| Label Finish | Matte |
| Label Color | White |
| Material Series | B-342 |
| Product Type | Wire Marking Sleeve |
| Minimum Wire Diameter | 0.19 in |
| Recommended Ribbon | M71-R6600 |
| Material Properties | Heat-Shrinkable |
| Double-Sided Printable | No |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
