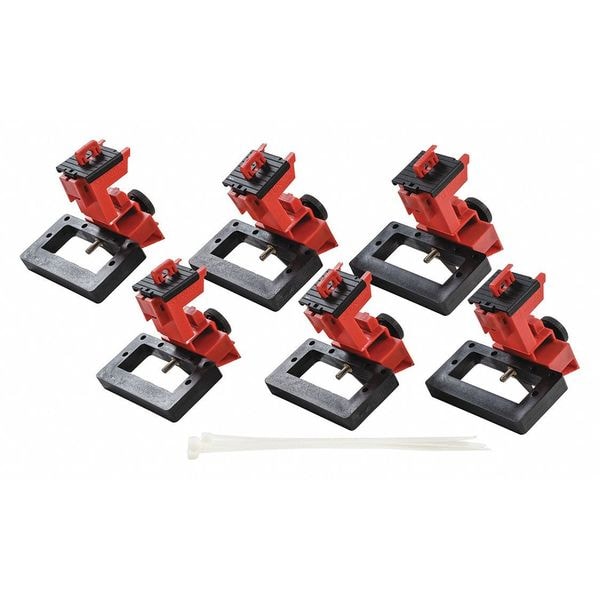

Oversized Breaker Lockout, Circuit Breaker with Standard Nylon Cable Ties, 480/600V AC, 1 Poles
| Item | Oversized Breaker Lockout |
|---|---|
| For Use With | Circuit Breaker with Standard Nylon Cable Ties |
| Voltage | 480/600V AC |
| Number of Poles | 1 |
| Depth | 4.143 in |
| Max. Number of Padlocks | 1 |
| Features | No Lock Needed, ID Tags can be Pre-Loaded onto Taglock Devices |
| Color | Red |
| Material | Nylon, Polypropylene |
| Circuit Breaker Voltage | 480/600 |
| Padlock Shackle Max. Dia. | 9/32 in |
| Circuit Breaker Poles | 1 |
| Lockout Type | Clamp-On |
| Height | 4-1/8 in |
| Includes | (6) TagLock Lockouts |
| Width | 3-3/4 in |
| OSHA Compliant | No |
| Length | 4-1/8 in |
| Housing Material | Fiberglass Reinforced Nylon, Polypropylene |
| Standards | ANSI Z244, OSHA 29 CFR 1910.147 (C) (4) (ii) (A) (1) / (c) (5) (ii) (C) (1) |
| Dimensions | 2.358 in H x 3-3/4 in W x 4.143 in D |
| Length (Straight Wireway) | 4-1/8 in |
| Overall Height | 4.14 in |
| Overall Length | 4.13 in |
| Labeling | Tag Included |
| Maximum Number of Padlocks | 1 |
| Overall Width | 3-3/4 in |
| For Maximum Switch Width | 2-1/4 in |
| Language | English |
| Lockout Material | Fiberglass Reinforced Nylon, Polypropylene |
| Minimum Temperature | -4 deg F |
| Overall Depth | 2.36 in |
| For Circuit Breaker Type | Oversized |
| Maximum Temperature | 176 deg F |
| For Voltage | 480/600V AC |
| Mount Type | Clamp-On |
| Lockout Color | Red |
| Resistance Properties | Chemical Resistant |
| Circuit Breaker Lockout Type | Clamp-On |
| For Circuit Breaker Manufacturer | TagLock |
| For Maximum Padlock Shackle Diameter | 9/32 in |
| Package Quantity | 6 |
