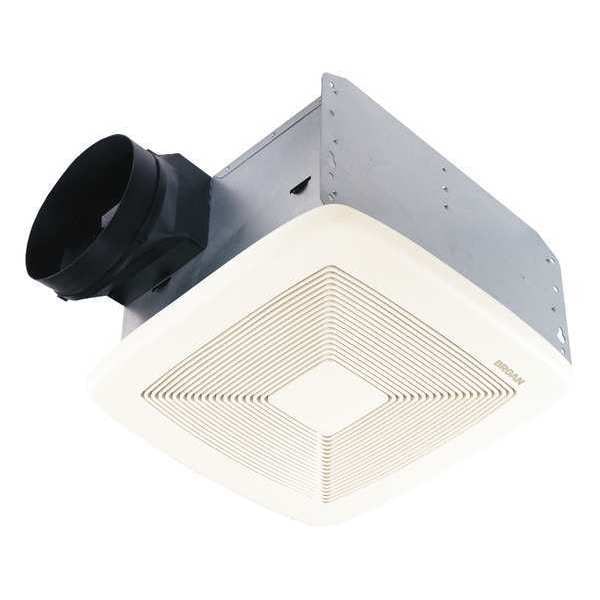

Ceiling Bathroom Fan, 150 cfm cfm, 6 in Duct Dia., 120V AC, Energy Star Certified
| Voltage | 120V AC |
|---|---|
| Mounting Location | Ceiling |
| CFM @ 0.100-In. SP | 150 cfm |

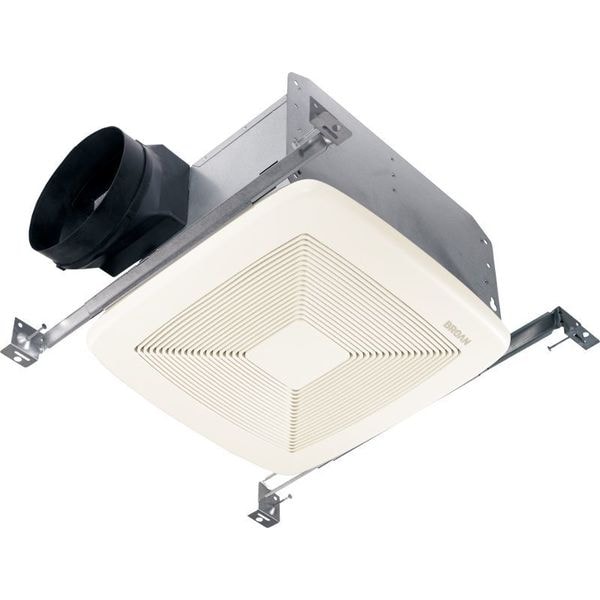

| Includes | Damper, Hanger Bars, Non Metallic Duct Connector, Spacer for Mounting to Ceiling Joist |
| Phase | 1 |
| Watts | 58 |
| Duct Dia. | 6 in |
| Amps | 0.5 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 1.4 |
| Lighted | Without Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Medium |
| Discharge | Horizontal |
| Height (In.) | 7-5/8 |
| Green Certification or Other Recognition | Energy Star® Certified |
| Grille Width | 14 in |
| Hz | 60 |
| Housing Width | 10-1/2 in |
| Night-Light | No |
| Grille Material | Polymeric |
| Humidity Sensing | No |
| Item | Bathroom Fan |
| Width (In.) | 11-3/8 |
| Construction Material | Metal |
| Housing Length | 11-3/8 in |
| Standards | ENERGY STAR Certified, HVI Certified, UL Listed |
| Nominal RPM | 770 RPM |
| Housing Height | 7-5/8 in |
| Grille Length | 13 in |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Grille Color | White |
| Motor Type | Permanently Lubricated |
| Overall Width | 11-3/8 in |
| Width | 58 |
| Overall Height | 7-5/8 in |
| Exhaust Airflow @ 0.100 in SP | 150 cfm |
| Sensor Type | None |
| Motor Speed | 770 RPM |
| Maximum Noise Level | 1.4 sones |
| Full Load Current | 0.5 A |
| Includes Grill | Yes |
| Noise Level @ 0.100 in SP @ 5 ft | 1.4 sones |
| Frequency | 60 Hz |
| Maximum Coverage Area | 140 sq ft |
| Profile Height Family | Medium |
| Includes Light Bulbs | No |
| Profile Width Family | Single-Wide |
| Exhaust Airflow @ 0.250 in SP | 120 cfm |
| Duct Diameter | 6 in |
| Overall Depth | 10-1/2 in |
| Duct Shape | Round |
| Nameplate Voltage | 120 V AC |
| Housing Finish | Galvanized |
| Roomside Installation | No |
| Vent Design | Ducted |
| Wattage | 58 W |
| Discharge Direction | Horizontal |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
