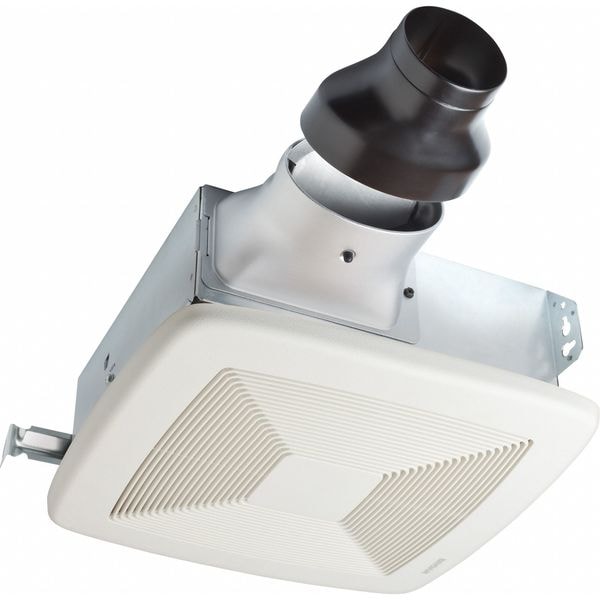

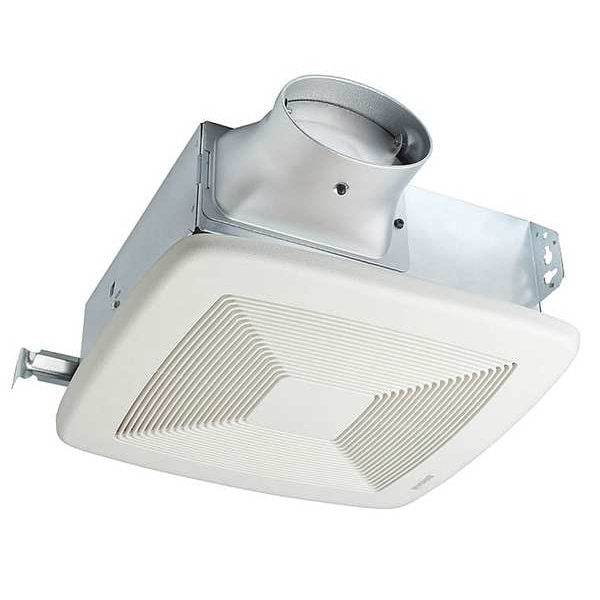

Ceiling or Wall Bathroom Fan, 80 cfm cfm, 4 in or 3 in Duct Dia., Energy Star Certified
| Voltage | 120V AC |
|---|---|
| Mounting Location | Ceiling, Wall |
| CFM @ 0.100-In. SP | 80 cfm |
| Includes | Duct Connector, Metal Damper |
| Phase | 1 |
| Watts | 36 |
| Duct Dia. | 4 in, 3 in |
| Amps | 0.3 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 1 |
| Lighted | Without Light |
| Heater | Without Heater |
| Motion Sensing | No |
| Profile | Low |
| Housing Height | 4 in |
| Grille Width | 14 in |
| Humidity Sensing | No |
| Discharge | Horizontal, Vertical |
| Width (In.) | 11-3/8 |
| Grille Length | 13 in |
| Item | Bathroom Fan |
| Night-Light | No |
| Grille Material | Polymeric |
| Hz | 60 |
| Housing Width | 10-1/2 in |
| Standards | cULus Listed, ENERGY STAR, HVI Certified |
| Construction Material | Metal |
| Requires | Ductwork |
| Green Certification or Other Recognition | Energy Star® Certified |
| Height (In.) | 4 |
| Nominal RPM | 600 RPM |
| Housing Length | 11-3/8 in |
| Grille Color | White |
| Motor Type | Permanent Split Capacitor |
| Overall Depth | 10-1/2 in |
| Duct Shape | Oval, Round |
| Full Load Current | 0.3 A |
| Nameplate Voltage | 120 V AC |
| Includes Light Bulbs | No |
| Includes Grill | Yes |
| Maximum Coverage Area | 75 sq ft |
| Overall Width | 11-3/8 in |
| Overall Height | 4 in |
| Exhaust Airflow @ 0.000 in SP | 104 cfm |
| Wattage | 36 W |
| Noise Level @ 0.250 in SP @ 5 ft | 1.2 sones |
| Motor Speed | 713 RPM |
| Discharge Direction | Horizontal, Vertical |
| Vent Design | Ducted |
| Noise Level @ 0.000 in SP @ 5 ft | 0.6 sones |
| Housing Finish | Galvanized |
| Exhaust Airflow @ 0.250 in SP | 56 cfm, 61 cfm |
| Profile Height Family | Low |
| Roomside Installation | No |
| Exhaust Airflow @ 0.100 in SP | 80 cfm |
| Maximum Noise Level | 1 sones |
| Noise Level @ 0.125 in SP @ 5 ft | 0.8 sones |
| Duct Diameter | 4 in |
| Frequency | 60 Hz |
| Profile Width Family | Single-Wide |
| Noise Level @ 0.100 in SP @ 5 ft | 1 sones |
| Sensor Type | None |
| Width | 36 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
