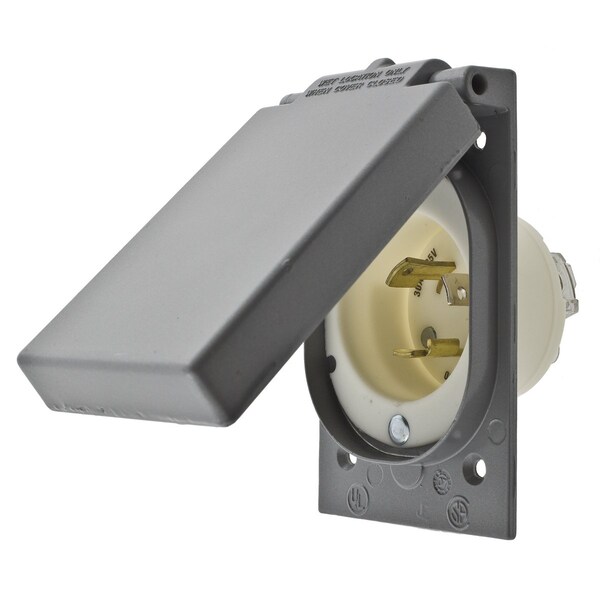

Locking Device, Flngd Inlet, 30A 125V, 2-Pole 3-Wire Grndng, L5-30P, Scrw Terminal, Wht, Wthrprf Cvr
| Voltage | 125 V |
|---|---|
| Amps | 30 |
| Color | White |
| Wiring Style | Weatherprotective |
| Mounting Type | Screw Mounting |
| Application | Extra Heavy Duty Industrial |
| Features | Impact resistant thermoplastic construction; Backwired terminations for ease of installation; #10-32 Multiple drive terminal screws; Mounting screws included; Weather Protective Cover |
| Material | Composite |
| Operating Temp. | Maximum Continuous: 75A Deg C; Minimum Continuous: -40A Deg C w/o impact |
| Wire Size | #14 AWG to #8 AWG |
| Nema Rating | L5-30P |
| Number Of Wires | 3-Wire |
| Number Of Poles | 2-Pole |
| Item Type | 30A Weather Protective Power Inlet |
| Connectivity | Screw Terminals |
| Amperage Rating | 30 A |
| Style | Weatherprotective |
| Material - Mounting Hardware | Screw Mounting |
| Dielectric Strength | Withstands 3500V |
| Environmental Conditions | Weather Resistant |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact |
| Type | Flanged Inlet |
| Height | 2.02 in |
| Voltage Rating | 125 V |
| Length | 2.88 in |
| Width | 2.88 in |
| Display Size | Standard Sized Product |
| Insulation | Insulated Body |
| Package Quantity | 1 |
