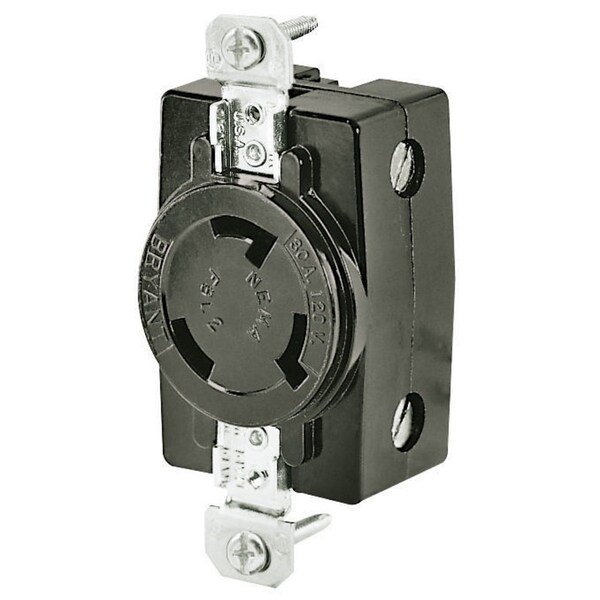

Locking Device, Flush Receptacle, 30A 120V AC 400Hz, 2-Pole 3-Wire Grounding, FSL2R, Scrw Term, Blk
| Phase | Single Phase |
|---|---|
| Material | Composite |
| Application | Extra Heavy Duty Industrial Specification Grade |
| Features | Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors; Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly; NEMA rating and configuration are molded into face for easy identification; One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention; Designed, tested and approved for use on 400 Hz (400 cycles per second) circuits |
| Wire Size | #14 AWG to #8 AWG |
| Material - Mounting Hardware | Screw Mounting |
| Number Of Wires | 3-Wire |
| Style | Single Receptacle |
| Item Type | 30A Single Nylon Receptacle |
| Length | 3.28 in |
| Nema Rating | FSL2-R |
| Amperage Rating | 30 A |
| Voltage Rating | 120 V |
| Height | 1.14 in |
| Width | 1.71 in |
| Type | Receptacle |
| Number Of Poles | 2-Pole |
| Connectivity | Terminal Screws |
| Display Size | Standard Sized Product |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Package Quantity | 1 |
