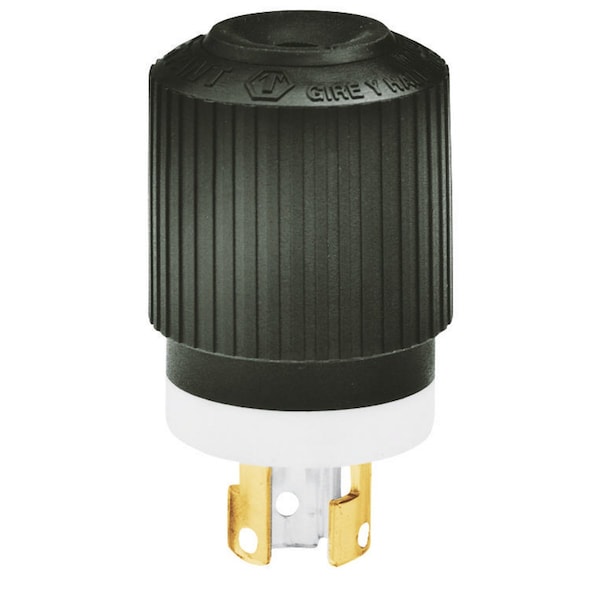

Locking Device, Male Plug, 15A 125V/10A 250V, 3-Pole 3-Wire Non-Grounding, Non-NEMA, Scrw Term, Blk
| Length | 1.53 in |
|---|---|
| Phase | Single Phase |
| Application | Extra Heavy Duty Industrial |
| Color | Black, White |
| Material | Composite |
| Wire Size | #14 AWG to #10 AWG |
| Width | 1.53 in |
| Features | Hand grip features wide-rib, non-slip design; Configuration-specific plug face surrounds blades to prevent infiltration of contaminants; Captive, combination Slot/Phillips assembly screws; Double wall construction for extra durability; Neutral blade is nickel-plated for easy identification; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention |
| Height | 2.18 in |
| Type | Plugs |
| Style | Internal Cord Clamp |
| Connectivity | Screw Terminals |
| Material - Mounting Hardware | Cord Mounted |
| Item Type | 10A |
| Nema Rating | Non-NEMA |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number Of Poles | 3-Pole |
| Number Of Wires | 3-Wire |
| Amperage Rating | 10A |
| Display Size | Standard Sized |
| Voltage Rating | 250 V |
| Package Quantity | 1 |
