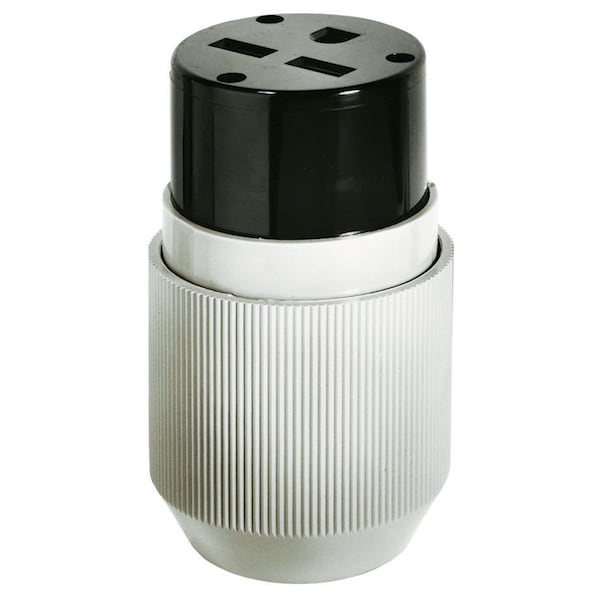

Straight Blade Devices, Female Connector, HD, Straight, 30A 250V, 2-Pole 3- Wire Grounding, 6-30R
| Voltage | 250 V |
|---|---|
| Number of Poles | 2 |
| Number of Wires | 3 |
| Amps | 30 |
| Grade | Heavy Duty; Industrial; Extra Heavy Duty |
| Special Features | Insulated Body |
| Color | Gray |
| Material | Composite |
| Item | Standard Connector |
| Application | Heavy Duty |
| Width | 2.59 in |
| Length | 5.19 in |
| Maximum Wire Size | 8 AWG |
| For Environment | Indoor Dry Unless Protected By Additional Means |
| Grounding Style | Grounding |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 75 deg C |
| Minimum Wire Size | 12 AWG |
| Item Type | Standard |
| Insulation | Insulated Body |
| Style | Extra Heavy Duty |
| Amperage Rating | 30 A |
| Material - Mounting Hardware | Cord Mounted |
| Type | Connector Body |
| Display Size | Standard Sized Product |
| Connectivity | Pressure Terminal Screws |
| Series | Industrial |
| Conductor Range | #12 AWG to #8 AWG |
| Voltage Rating | 250 V |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number Of Conductors | 3-Wire Grounding |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Nema Rating | 6 to 30 R |
| Package Quantity | 1 |
