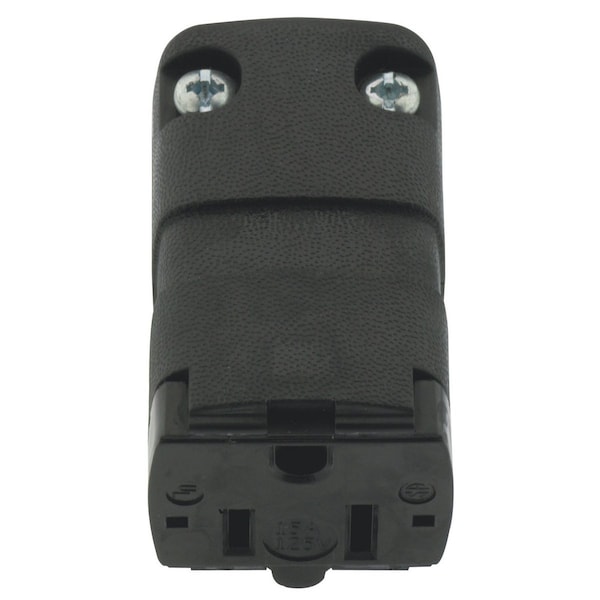

Strght Blade Device, Female, Straight, 2-Pole 3-Wre Grndng, Insulation Displacement, 15A 125V, 5-15R
| Voltage | 125 V |
|---|---|
| Number of Poles | 2 |
| Number of Wires | 3 |
| Special Features | Insulated Body |
| Material | Composite |
| Phase | Single Phase |
| Application | Heavy Duty |
| Width | 1-1/4 in |
| Amps | 15 |
| Height | 1.17 in |
| Length | 2-1/4 in |
| Grade | Heavy Duty; Commercial |
| Color | Black |
| Item | Valise Connector |
| Grounding Style | Grounding |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 14 AWG |
| Maximum Wire Size | 10 AWG |
| Maximum Operating Temperature | 75 deg C |
| For Environment | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard Sized Product |
| Number Of Conductors | 3-Wire Grounding |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Item Type | Valise |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Connectivity | Insulation Displacement |
| Amperage Rating | 15 A |
| Nema Rating | 5 to 15 R |
| Insulation | Insulated Body |
| Type | Connector Body |
| Series | Commercial |
| Style | Heavy Duty |
| Material - Mounting Hardware | Cord Mounted |
| Voltage Rating | 125 V |
| Package Quantity | 1 |
