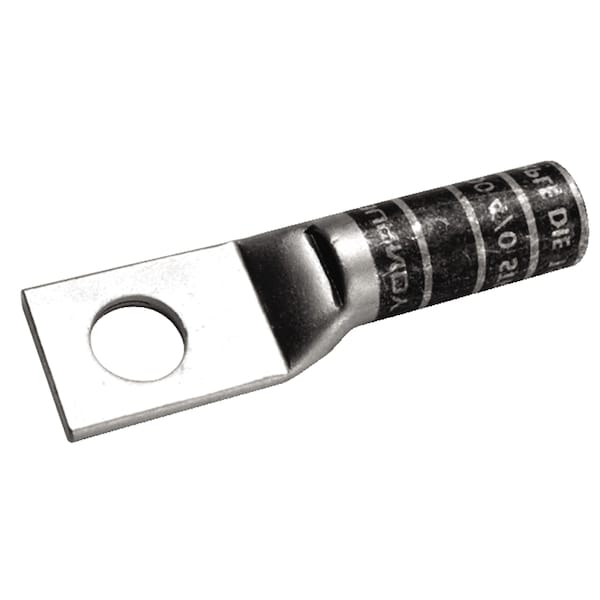

1 HOLE LUG LONG BRL 4 AWG, 1/4" BOLT, PEEP HOLE GRY ROHS
Conector de un agujero largo para cable calibre 4, perno de 1/4 de pulgada, agujero de inspección color gris, compatible con ROHS.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Gray |
| Rating - KVA | 35 kV |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Voltage - Maximum | 35000 |
| Conductor - Copper Str Navy Size | 40 (19) Navy |
| Dimension - B Length inch | 1.12 in |
| Rating - Minimum Voltage | 600 |
| Dimension - Strip Length inch | 42372 |
| Application | For Code Conductor |
| Conductor - Copper Str Size | 4 AWG |
| Physical Attribute - Tongue Angle | Straight |
| Feature - Barrel Type | Long |
| Dimension - Z inch | 0.33 in |
| Physical Attribute - Number of Holes | 1 |
| Dimension - Outside Diameter inch | 0.34 in |
| Die Index | 8;346 |
| Dimension - N inch | 0.31 in |
| Dimension - Hole Size inch | 0.27 in |
| Plated | Y |
| Type | Tin Plated, Long Barrel, Skive |
| Dimension - Hole Size mm | 7 mm |
| Certification - CSA Approved | Yes |
| Dimension - L Length Overall mm | 52 mm |
| Dimension - Pad Width inch | 1/2 in |
| Plating Type | Tin Electro Plated |
| Dimension - Length Overall inch | 2.04 in |
| Conductor - Material | Copper |
| Dimension - Stud Size inch | 44930 |
| Dimension - B Length fraction | 1-1/8 in |
| Feature - Barrel Style | Skived |
| Lug Length X Tongue Width (In.) | 2.05 in x 0.49 in |
| Holes | 1 HOLE |
| Bolt Hole | 1/4 in |
| Inspection Hole | Yes |
| Package Quantity | 1 |
