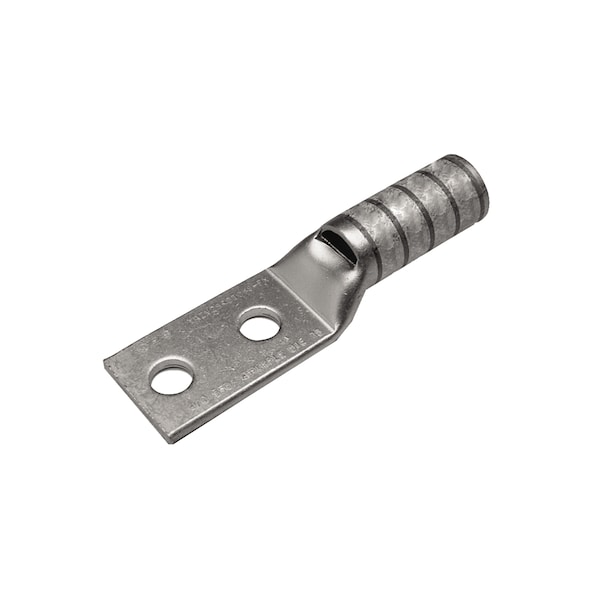

Terminal flexible de 2 orificios para cable calibre 2 AWG, tornillo de 1/4" y centro de 5/8", agujero de inspección, color café, cumpliendo con la normativa RoHS.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Brown |
| Dimension - Length Side B inch | 3.01 in |
| Dimension - Hole Size mm | 7 mm |
| Conductor - Copper Flex K Size Range | 2 AWG |
| Dimension - Hole Size inch | 0.27 in |
| Conductor - Copper DLO Size | 3 (125/#24) DLO;2 (150/#24) DLO |
| Dimension - Z inch | 0.34 in |
| Conductor - Material | Copper |
| Rating - Minimum Voltage | 600 |
| Dimension - B Length fraction | 1-3/8 in |
| Conductor - Copper Str Size | 2 AWG |
| Dimension - L Length Overall mm | 76 mm |
| Type | Long Barrel, Skive |
| Conductor - CopperWeld Str Size Range | 2 A AWG-2 P AWG |
| Feature - Barrel Style | Skived |
| Feature - Barrel Type | Long |
| Plating Type | Tin |
| Conductor - Copper DLO Size Range | 3 (125/#24) DLO-2 (150/#24) DLO |
| Dimension - N inch | 0.31 in |
| Plated | Y |
| Conductor - Copper Flex I Size | 2 AWG |
| Conductor - Copper Flex K Size | 2 AWG |
| Application | For Flex Conductors |
| Conductor - Copper Flex G Size Range | 2 AWG |
| Dimension - Outside Diameter inch | 0.46 in |
| Conductor - Copper Flex I Size Range | 2 AWG |
| Conductor - Copper Flex M Size | 2 AWG |
| Physical Attribute - Number of Holes | 2 |
| Conductor - Copper Flex H Size | 2 AWG |
| Conductor - CopperWeld Str Size | 2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG |
| Conductor - Copper Flex M Size Range | 2 AWG |
| Conductor - Copper Flex H Size Range | 2 AWG |
| Voltage - Maximum | 35000 |
| Dimension - Strip Length inch | 42376 |
| Rating - KVA | 35 kV |
| Conductor - Copper Flex G Size | 2 AWG |
| Dimension - Pad Width inch | 0.68 in |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 1.38 in |
| Die Index | 10 |
| Dimension - Length Overall inch | 3.01 in |
| Certification - CSA Approved | Yes |
| Holes | 2 HOLE |
| Stud Hole Spacing (In.) | 5/8" |
| Stud Hole Size (In.) | 1/4" |
| Inspection Hole | Yes |
| Bolt Hole | 1/4 in |
| Lug Length X Tongue Width (In.) | 3.01 in x 0.68 in |
| Package Quantity | 1 |
