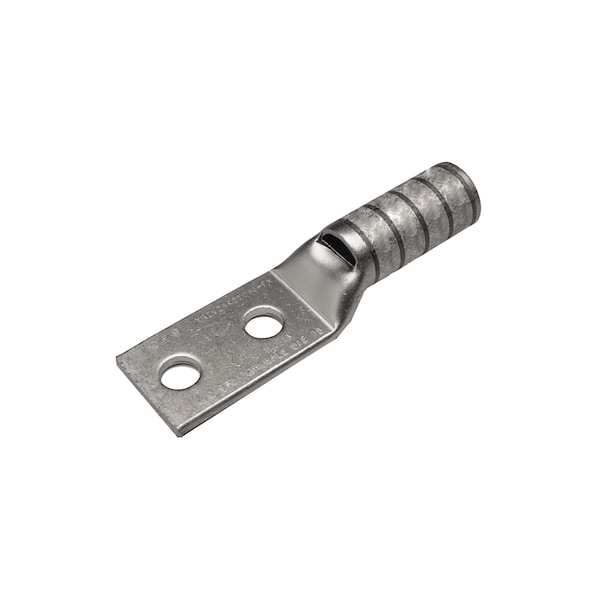

2 orificios de flexión, terminal largo BRL 8 AWG, perno de 1/4" y centro de 5/8", agujero de inspección ROHS.
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Color Code | Red |
| Dimension - B Length fraction | 13/16 in |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - Pad Width inch | 0.44 in |
| Conductor - Material | Copper |
| Dimension - Z inch | 0.33 in |
| Conductor - CopperWeld Str Size | 8 A AWG;8 C AWG;8 D AWG |
| Voltage - Maximum | 35000 |
| Rating - KVA | 35 kV |
| Dimension - Strip Length inch | 1 in |
| Application | For Flex Conductors |
| Plated | Y |
| Dimension - Hole Size mm | 7 mm |
| Conductor - Copper Flex H Size | 8 AWG |
| Physical Attribute - Number of Holes | 2 |
| Rating - Minimum Voltage | 600 |
| Type | Long Barrel, Skive |
| Die Index | 49 |
| Dimension - Length Side B inch | 2.32 in |
| Conductor - Copper Flex G Size | 8 AWG |
| Dimension - Length Overall inch | 2.33 in |
| Conductor - Copper Flex I Size | 8 AWG |
| Physical Attribute - Tongue Angle | Straight |
| Conductor - Copper DLO Size | 8 (37/#24) DLO |
| Plating Type | Tin Electro Plated |
| Feature - Barrel Type | Long |
| Conductor - Copper Flex K Size | 8 AWG |
| Dimension - Inside Diameter inch | 0.18 in |
| Dimension - Outside Diameter inch | 0.27 in |
| Conductor - Copper Flex M Size | 8 AWG |
| Certification - CSA Approved | Yes |
| Dimension - Hole Size inch | 0.27 in |
| Dimension - N inch | 0.31 in |
| Dimension - B Length inch | 0.81 in |
| Conductor - Copper Str Size | 8 AWG |
| Dimension - L Length Overall mm | 59 mm |
| Stud Hole Size (In.) | 1/4" |
| Bolt Hole | 1/4 in |
| Holes | 2 HOLE |
| Center Spacing | 5/8 in |
| Inspection Hole | Yes |
| Lug Length X Tongue Width (In.) | 2.33 in x 0.44 in |
| Stud Hole Spacing (In.) | 5/8" |
| Package Quantity | 1 |
