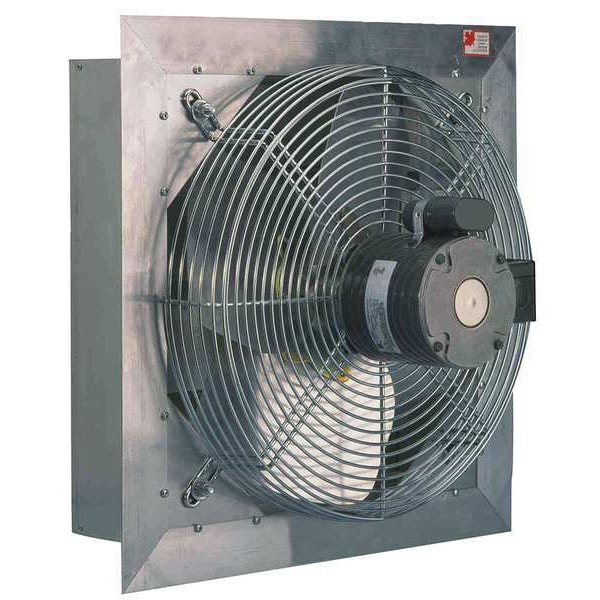

Exhaust Fan, 12 In, 115V, 1/15hp, 1450rpm
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Blade Dia. | 12 in |
| Number of Speeds | Variable |
| Fan Voltage | 115 V |
| CFM @ 0.000-In. SP | 1,350 |
| Exhaust/Supply Fan Motor HP | 1/15 hp |
| Square Opening Required | 10-1/2 to 20 in |
| Width | 16-3/4 in |
| Height | 16 3/4 in |
| Item | Shutter Mount Exhaust Fan |
| Motor Insulation | Class B |
| Number of Blades | 3 |
| Motor Type | 3-Phase |
| Bearing Type | Sleeve |
| Drive Package Included | No |
| Motor Enclosure | Totally Enclosed Air Over |
| Hz | 60 |
| Max. Depth | 16 in |
| Motor RPM | 1,450 |
| Standards | OSHA Compliant |
| Speed Control Item Number | Mfr No. MC3 |
| Thermal Protection | Auto |
| CFM @ 0.250-In. SP | 1150 |
| Blade Material | Aluminum |
| Frame Finish | Aluminum |
| CFM @ 0.125-In. SP | 1275 |
| Phase | 1 |
| Full Load Amps | 1 |
| Frame Material | Aluminum |
| Wire Guard Finish | Chrome |
| Max. Ambient Temp. | 104 deg F |
| Includes | Shutter |
| Guard Material | Steel |
| Guard Type | Intake |
| Overall Height | 16-3/4 in |
| For Cut-Out Width | 14 in |
| Manufacturer Warranty Length | 1 yr |
| Wattage | 115 W |
| Method of Construction | Stamped |
| Maximum Ambient Operating Temperature | 104 deg F |
| Duct Width | Not Applicable |
| Motor Horsepower | 1/15 hp |
| Control Type | Rotary Dial |
| Supply Airflow @ 0.000 in SP | 1,350 cfm |
| Exhaust Airflow @ 0.125 in SP | 1,275 cfm |
| For Cut-Out Length | 14 in |
| Frequency | 50 Hz |
| Assembled | Assembled |
| Maximum Airflow | 1,350 cfm |
| Duct Height | Not Applicable |
| Overall Depth | 16 in |
| Fan Style | Shutter-Mounted |
| For Maximum Wall Thickness | 5 in |
| Vent Design | Ductless |
| Overall Width | 16-3/4 in |
| Exhaust Airflow @ 0.100 in SP | 1,290 cfm |
| Discharge Direction | Horizontal |
| Guard Finish | Chrome |
| Housing Finish | Aluminum |
| Includes Motor | Yes |
| Blade Diameter | 12 in |
| Speed Controllable | Yes |
| Duct Diameter | Not Applicable |
| Electrical Connection | Hardwired |
| Duct Shape | Not Applicable |
| Drive Type | Direct Drive |
| Full Load Current | 1 A |
| For Cut-Out Height | 14 in |
| Overall Diameter | 16-3/4 in |
| Housing Material | Aluminum |
| Noise Level @ 0.000 in SP @ 5 ft | 9.2 sones |
| Number of Fans | 1 |
| Exhaust Airflow @ 0.000 in SP | 1,350 cfm |
| Exhaust Airflow @ 0.250 in SP | 1,150 cfm |
| Maximum Noise Level | 9.2 sones |
| Nameplate Voltage | 115V AC |
| Noise Level @ 0.100 in SP @ 5 ft | 9.2 sones |
| Motor Speed | 1,450 rpm |
| Mounting Orientation | Horizontal |
| Includes Grill | No |
| Ventilation Type | Exhaust |
| For Minimum Wall Thickness | 5 in |
| Includes Dehumidistat | No |
| Voltage | 115 V |
| Speed Control | 23N628 |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
