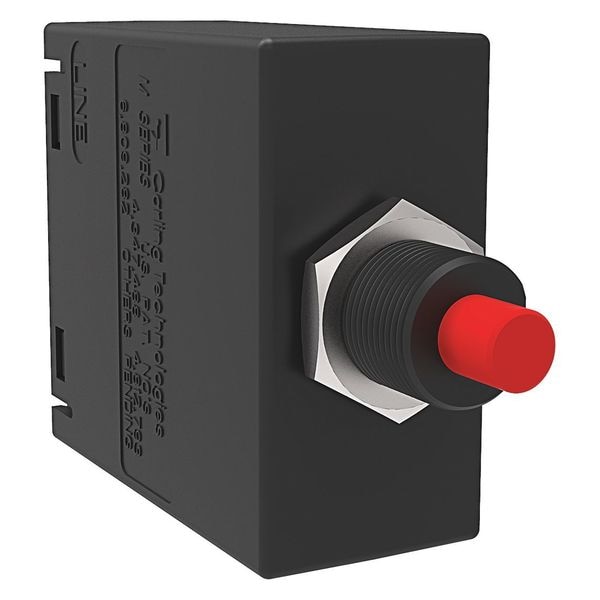

Circuit Breaker, M Series, 2A, 1 Pole, 250V AC, 1.5kA at 120V AC, Medium Curve
| Item | Circuit Breaker |
|---|---|
| Series | M |
| Amps | 2A |
| Number of Poles | 1 |
| AC Voltage Rating | 250V AC |
| Circuit Breaker Type | Magnetic |
| Phase | 1 |
| Circuit Breaker Actuator | Push Button |
| Circuit Breaker Mounting Style | Snap In |
| Max. AIR Rating | 1.5kA at 120V AC |
| Trip Type | Series Trip |
| Terminal Connection | 1/4 in Tab |
| Width | 0.68 in |
| Depth | 1.85 in |
| Height | 1.38 in |
| DC Voltage Rating | 80V DC |
| Curve Type | Medium |
| AIR @ 65VDC | Not Rated |
| Max. Wire Size | Not Specified |
| AIR @ 125VDC | Not Rated |
| AIR @ 120VAC | 1.5kA |
| Standards | CSA, TUV, UL |
| AIR @ 240VAC | 0.5 KA |
| Max. Panel Thickness | 0.1 in |
| Min. Operating Temp. | -40 deg F |
| Actuator Color | Red |
| Panel Cutout Size | 1.139 in x 1.42 in |
| Max. Operating Temp. | 185 deg F |
| Length (Straight Wireway) | 1.38 in |
| Switch Type | Push-to-Reset |
| Mounting Type | Snap-in |
| Length | 1.38 in |
| Package Quantity | 1 |
