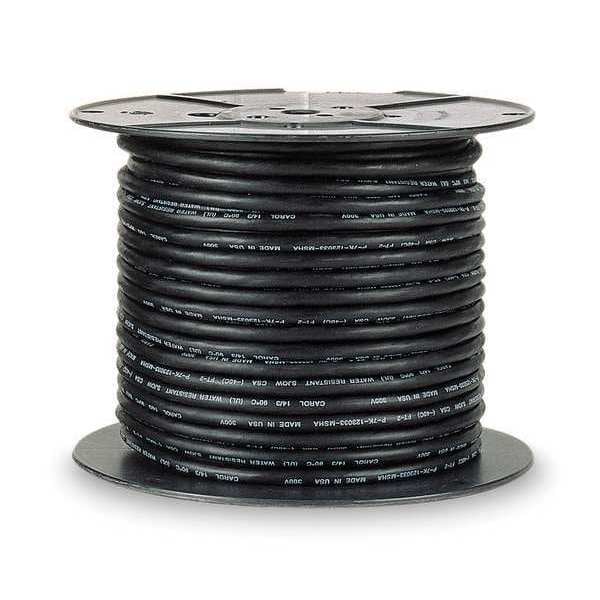

Portable Cord, SOOW, 4 AWG, 4 C, Black, Rubber, Stranded, 600V, Indoor/Outdoor, 25 ft
| Item | Portable Cord |
|---|---|
| Trade Designation | SOOW |
| Wire Size | 4 AWG |
| Number of Conductors | 4 |
| Conductor Design | Stranded |
| Jacket Material | Rubber |
| Jacket Color | Black |
| Length | 25 ft |
| Location | Indoor, Outdoor |
| Voltage | 600V |
| Conductor Material | Copper |
| Standards | CSA, MSHA Approved, RoHS Compliant, UL Flexible Cord |
| Nominal Outside Dia. | 1.26 in |
| Wire Color | Black, Green, Red, White |
| Features | Oil/Sunlight Resistant, Weatherproof, Waterproof |
| Max. Amps | 60 |
| Temp. Rating | -40 to 90°C |
| Conductor Size | 4 AWG |
| Special Features | Oil Resistant, UV Resistant, Waterproof, Weatherproof |
| Gauge/Conductor | 4/4 |
| Outside Dia. | 1.26 in |
| Overall Length | 25 ft |
| Temperature Rating - Maximum Wet | 194 deg F |
| Grounding Conductor Insulation Material | EPDM |
| Number of Ground Conductors | 0 |
| Grounding Conductor Insulation Color | Not Applicable |
| Packaging | Reel |
| Temperature Rating - Maximum Dry | 194 deg F |
| Ampacity at Maximum Temperature | 48 A |
| Nominal Outside Diameter | 1.26 in |
| Minimum Bend Radius | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Grounding Conductor Material | Not Applicable |
| Conductor Insulation Material | EPDM |
| Grounding Conductor Size | Not Applicable |
| Conductor Insulation Color | Black, Green, Red, White |
| Number of Strands | 133 |
| Series | Not Applicable |
| Package Quantity | 1 |
