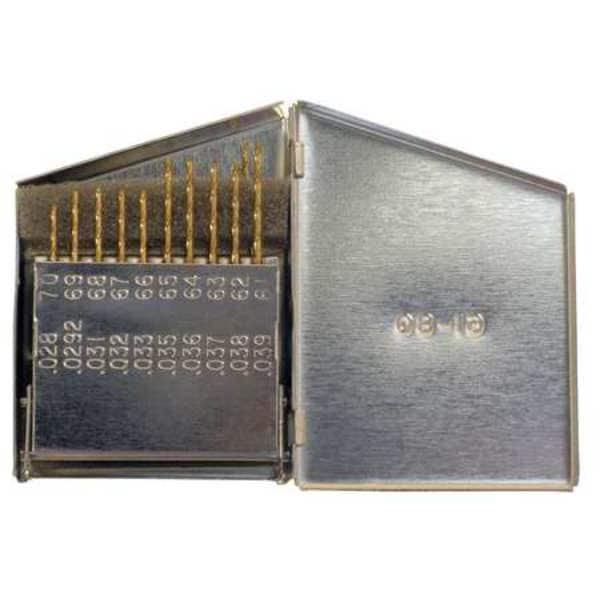

20PC 118 Degree General Purpose Jobber Lengh Drill Set Chicago-Latrobe 150-TN TiN HSS #61-#80
| Item | Jobber Drill Bit Set |
|---|---|
| Number of Pieces | 20 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Material | High Speed Steel |
| Includes | Metal Drill Index |
| Drill Bit Dimension Type | Wire |
| List Number | 150T |
| Drill Bit Grouping | Drill Bit Set |
| Point Type | Conventional Point |
| Sizes Included | #80-#61 |
| Drill Bit Size | #80-#61 |
| Depth x Dia. Ratio | 4 xD |
| Standards | ASME B94.11M-1993 |
| Shank Dia. | 0.0135 in to 0.0390 in |
| Largest Drill Bit Size | #61 |
| Measurement System | Wire |
| Smallest Drill Bit Size | #80 |
| Material - Machining | High Speed Steel |
| Drill Bit Sizes Included | #62, #63, #64, #65, #66, #67, #68, #69, #70, #71, #72, #73, #74, #75, #76, #77, #78, #79, #80 |
| Coolant Fed | Non-Coolant Through |
| Material Grade - Machining | General Purpose |
| Shank Type - Machining | Straight |
| Drill Bit Point Type | Conventional Point |
| Finish - Machining | TiN |
| Drill Length Class | Length |
| Number of Drill Bits | 20 |
| Primary Material Application | All Materials |
| Aircraft Drill | No |
| Drill Bit Case Type | Metal Drill Index |
| Flute Type | Spiral |
| Package Quantity | 1 |
