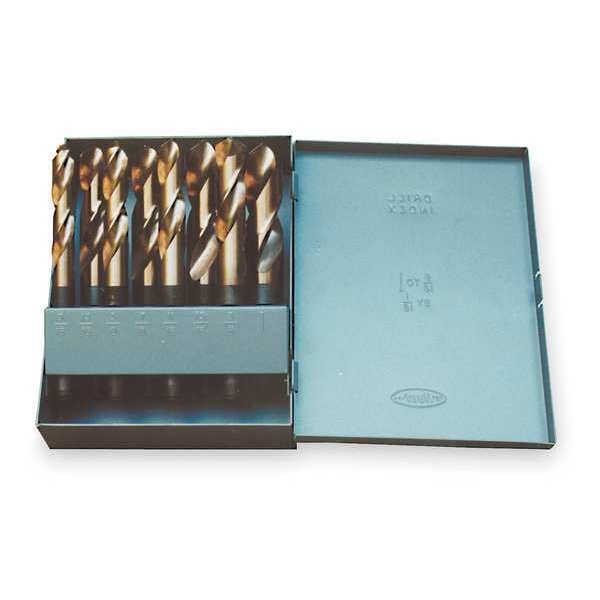

8PC 1/2 Reduced Shank Silver & Deming Drill Set Chicago-Latrobe 190C Straw HSS-CO 8% 9/16-1IN
| Item | Reduced Shank Drill Bit Set |
|---|---|
| Number of Pieces | 8 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Material | Cobalt |
| Includes | Metal Index |
| Drill Bit Dimension Type | Fractional Inch |
| Overall Length | 6 in |
| Application | For Alloy And Carbon Steel And Cast Iron |
| Drill Bit Grouping | Drill Bit Set |
| Point Type | Split point |
| List Number | 190C |
| Sizes Included | 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1" |
| Flute Length | 3 1/8 in |
| Shank Dia. | 1/2 in |
| Drill Bit Size | 9/16" to 1" by 1/16 |
| Shank Type | Round |
| Standards | Not Rated |
| Depth x Dia. Ratio | 4 xD |
| Flute Type | Spiral |
| Measurement System | Fractional Inch |
| Number of Drill Bits | 8 |
| Drill Bit Point Type | Split Point |
| Largest Drill Bit Size | 1 in |
| Material Grade - Machining | General Purpose |
| Drill Bit Sizes Included | 1 in, 11/16 in, 13/16 in, 15/16 in, 3/4 in, 5/8 in, 7/8 in, 9/16 in |
| Primary Material Application | All Materials |
| Material - Machining | Cobalt |
| Finish - Machining | Straw, Bronze |
| Coolant Fed | Non-Coolant Through |
| Smallest Drill Bit Size | 9/16 in |
| Shank Type - Machining | Straight |
| Drill Bit Case Type | Metal Index |
| Drill Style | Silver & Deming Drill |
| Size Range | 9/16"-1" |
| Left/Right Hand | Right |
| Package Quantity | 1 |
