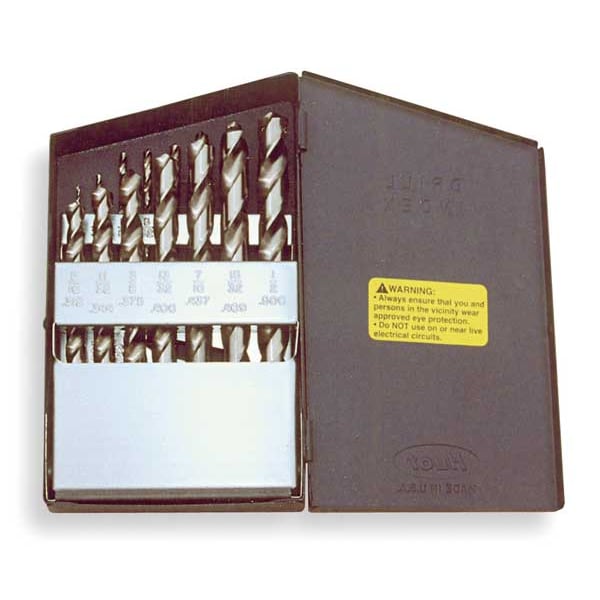

15PC 3/8 Reduced Shank General Purpose Jobber Drill Set Cle-Line 1900 Steam Oxide HSS 1/16-1/2x1/32
| Item | Reduced Shank Drill Bit Set |
|---|---|
| Number of Pieces | 15 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Material | High Speed Steel |
| Drill Bit Dimension Type | Fractional Inch |
| List Number | 1899 |
| Point Type | Conventional Point |
| Sizes Included | 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2" |
| Shank Dia. | 3/8 in |
| Application | For Carbon Steel And Cast Iron |
| Drill Bit Size | 1/16 in to 1/2 in x 1/32 in |
| Shank Type | Round |
| Depth x Dia. Ratio | 4 xD |
| Flute Type | Spiral |
| Material - Machining | High Speed Steel |
| Finish - Machining | Black Oxide |
| Standards | Not Rated |
| Measurement System | Fractional Inch |
| Left/Right Hand | Right |
| Size Range | 1/16"-1/2" |
| Drill Style | Jobber Drill |
| Coolant Fed | Non-Coolant Through |
| Helix Angle | 21 Degrees to 34 Degrees |
| Series | 1900 |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | Variable |
| Drill Bit Point Type | Radial Point |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in - +0.0000 in /-0.0010 in |
| Thread Direction | Right Hand |
| Package Quantity | 1 |
