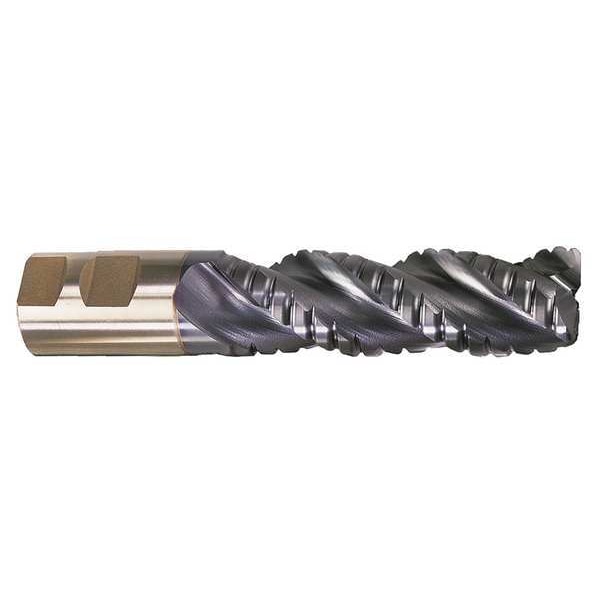

3-Flute PM+ HSS-E Square CC Special Profile Roughing EndMil CTD PM-538R-TC TiCN 1-1/2x1-1/4x6x8-1/2
| Milling Dia. | 1-1/2 in |
|---|---|
| Item | Square End Mill |
| Number of Flutes | 3 |
| Length of Cut | 6 in |
| Shank Dia. | 1-1/4 in |
| Finish | Ticn |
| Overall Length | 8-1/2 in |
| Cutting Direction | Right Hand |
| Helix Angle | 42 deg |
| Corner Radius | 0 in |
| End Mill Material | Powdered Metal |
| Dimension Type | Fractional Inch |
| Milling Diameter | 1-1/2 in |
| End Mill Cutting Type | Center Cutting |
| End Mill Application | Roughing |
| List Number | PM-538R-TC |
| Single End/Double End | Single End |
| Grade | General Purpose |
| End Mill Style | Square |
| Shank Type - Machining | Weldon Flat |
| Drilling Tool Configuration | Individual |
| Cutting Direction - Machining | Right Hand |
| Measurement System | Fractional Inch |
| Material - Machining | Powdered Metal |
| Neck Length | Not Applicable |
| Neck Dia. | Not Applicable |
| Finish - Machining | TiCN |
| Material Grade - Machining | General Purpose |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Primary Material Application ISO Code | N |
| Chip-Breaker | Yes |
| Package Quantity | 1 |
