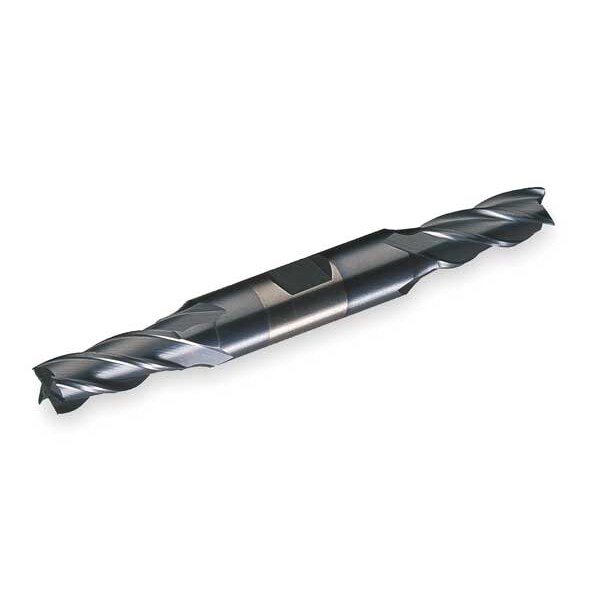

4-Flute Cobalt 8% Square Double End CenterCut Finisher CTD HDC-4C-TC TiCN 3/4x3/4x1-5/8x5-5/8
| Milling Diameter | 3/4 in |
|---|---|
| Length of Cut | 1-5/8 in |
| Overall Length | 5-5/8 in |
| Shank Dia. | 3/4 in |
| Helix Angle | 30 deg |
| List Number | HDC-4C-TC |
| End Mill Material | Cobalt |
| Number of Flutes | 4 |
| Corner Radius | 0 in |
| Finish | Ticn |
| Milling Dia. | 3/4 in |
| End Mill Cutting Type | Center Cutting |
| Single End/Double End | Double End |
| Item | Square End Mill |
| End Mill Application | Finishing |
| End Mill Style | Square |
| Cutting Direction | Right Hand |
| Dimension Type | Fractional Inch |
| Grade | General Purpose |
| Drilling Tool Configuration | Individual |
| Cutting Direction - Machining | Right Hand |
| Measurement System | Fractional Inch |
| Material - Machining | Cobalt |
| Shank Type - Machining | Weldon Flat |
| Finish - Machining | TiCN |
| Neck Length | Not Applicable |
| Neck Dia. | Not Applicable |
| Material Grade - Machining | General Purpose |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application ISO Code | P, M |
| Chip-Breaker | No |
| Package Quantity | 1 |
