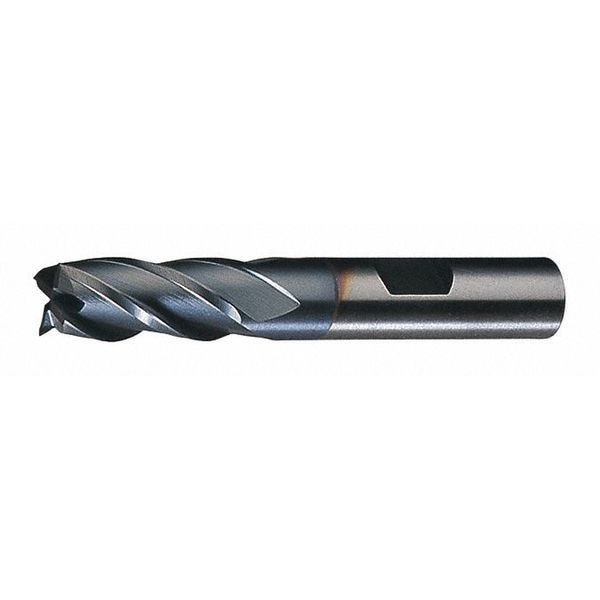

4-Flute Cobalt 8% Square Single End Multi-Flute CenterCut CTD HGC-4C-TC TiCN 5/8x5/8x2-1/2x4-5/8
| Dimension Type | Fractional Inch |
|---|---|
| Milling Diameter | 5/8 in |
| End Mill Material | Cobalt |
| Number of Flutes | 4 |
| Length of Cut | 2-1/2 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | General Purpose |
| Shank Dia. | 5/8 in |
| Overall Length | 4-5/8 in |
| End Mill Style | Square |
| Helix Angle | 30 deg |
| Item | Square End Mill |
| Stainless (M) Compatibility | Yes |
| List Number | HGC-4C-TC |
| Finish | TiCN |
| Cast Iron (K) Compatibility | No |
| Steel (P) Compatibility | Yes |
| End Mill Application | Finishing |
| Corner Radius | 0 in |
| Super Alloy (S) Compatibility | Yes |
| Milling Dia. | 5/8 in |
| Hardened (H) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Cutting Direction | Right Hand |
| Shank Type | Weldon |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Material - Machining | Cobalt |
| Cutting Direction - Machining | Right Hand |
| Drilling Tool Configuration | Individual |
| Shank Type - Machining | Weldon Flat |
| Measurement System | Fractional Inch |
| Finish - Machining | TiCN |
| Material Grade - Machining | General Purpose |
| Primary Material Application ISO Code | P, M |
| Primary Material Application | Stainless Steel, Steel |
| Chip-Breaker | No |
| Package Quantity | 1 |
