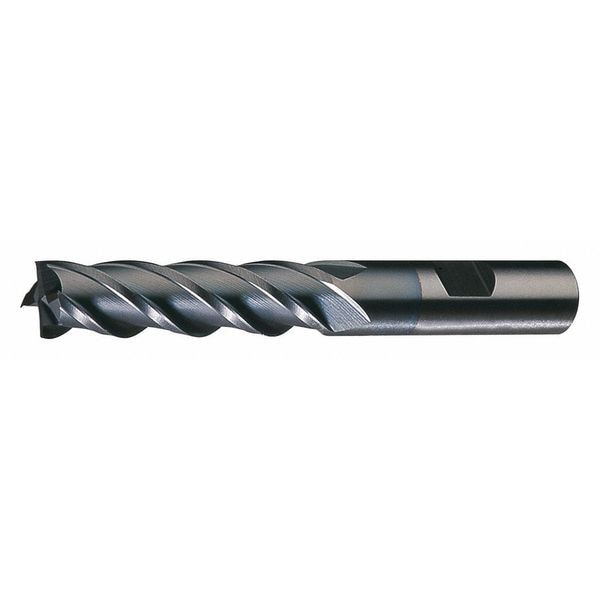

4-Flute PM+ HSS-E Square CC Single Finishing End Mill Cleveland PM-4-TC TiCN 13/32x1/2x1x2-11/16
| Dimension Type | Fractional Inch |
|---|---|
| Milling Diameter | 13/32 in |
| End Mill Material | Powdered Metal |
| Number of Flutes | 4 |
| Length of Cut | 1 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | Heavy Duty |
| Shank Dia. | 1/2 in |
| Overall Length | 2-11/16 in |
| Non Ferrous (N) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Shank Type | Weldon |
| List Number | PM-4-TC |
| Corner Radius | 0 in |
| Milling Dia. | 13/32 in |
| Finish | TiCN |
| End Mill Application | Finishing |
| Cutting Direction | Right Hand |
| Steel (P) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| Hardened (H) Compatibility | Yes |
| Helix Angle | 37 deg |
| End Mill Style | Square |
| Super Alloy (S) Compatibility | Yes |
| Item | Square End Mill |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Cutting Direction - Machining | Right Hand |
| Measurement System | Fractional Inch |
| Drilling Tool Configuration | Individual |
| Shank Type - Machining | Weldon Flat |
| Material - Machining | Powdered Metal |
| Finish - Machining | TiCN |
| Material Grade - Machining | Heavy Duty |
| Primary Material Application ISO Code | K |
| Primary Material Application | Cast Iron |
| Chip-Breaker | No |
| Package Quantity | 1 |
