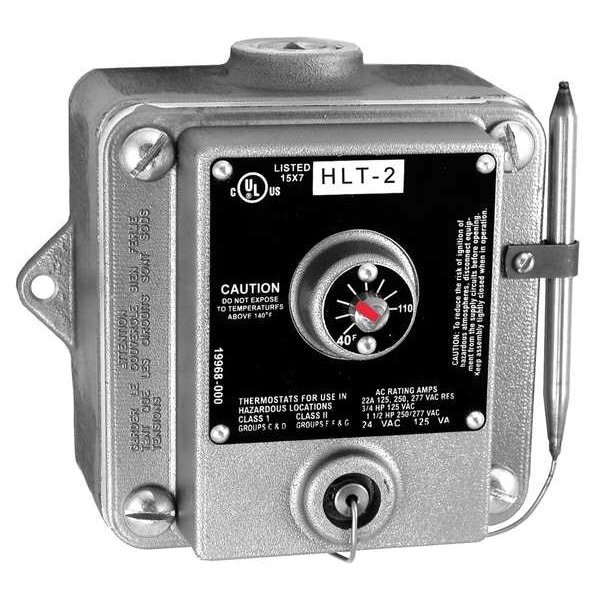

Hazardous Location Line Volt Mechanical Tstat, Open/Close on Rise, wall, DPDT, 24 to 277V AC
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 24 to 277V AC |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Differential | 2 Degrees to 4 Degrees F |
| Thermostat Control Range | 40 to 110 deg F |
| Mounting Location | Wall |
| Switch Type | DPDT |
| Color | Gray |
| Width | 6-3/8 in |
| Height | 5-5/8 in |
| Sensing Bulb Length | 4-3/4 in |
| Full Load Amps @ 120VAC | 4.6 A |
| Number of Switches | 2 |
| Resistive Amps @ 208VAC | 22 A |
| Remote Sensing Capability | Yes |
| Sensing Bulb Dia. | 5/16 in |
| Inductive Amps @ 240V | 10 A |
| Full Load Amps @ 240VAC | 4.6 A |
| Pilot Duty Contacts (VA) | 24 to 277VA |
| Capillary Length | 5-1/4 in |
| Thermostat Switch Type | DPDT |
| Inductive Amps @ 208V | 11 A |
| Item | Hazardous Location Line Volt Mechanical Tstat |
| Thermostat Heating/Cooling | Heating, Cooling |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Remote Sensing Bulb Included | Yes |
| Depth | 4-1/2 in |
| Thermostat Voltage | 24, 120 to 277V AC |
| Thermostat Programmable | No |
| Enclosure Type | Cast Aluminum |
| Contact Rating Resistive @ 240V | 22 A |
| Contact Rating Resistive @ 120V | 22 A |
| Standards | NEMA 7 Div I, cULus, Hazardous Location Class I GroupC and D Class II Group E |
| Contact Rating Resistive @ 277V | 22 A |
| Inductive Amps @ 120V | 13.8 A |
| Temp. Sensitivity | +/-4 deg F |
| Thermostat Type | Hazardous Location Single-Stage Controls |
| For Use With | Heating or Cooling in A Hazardous Location |
| Mounting | Wall |
| Application | Heat or Cool |
| Phase | 1 |
| Control Type | Screwdriver |
| Features | Pilot Duty Rated |
| Contact Type | Snap Action |
| Temperature Differential | 2 Degrees to 4 Degrees F |
| Maximum Control Temperature | 110 deg F |
| Resistive Amps @ 208V AC | 22 A |
| Stages | 1H, 1C |
| Contact Rating | 24 to 277V AC |
| Bulb Length | 4-3/4 in |
| Amperage | 4.6 A |
| Pilot Duty Rating | 24 VA @ 125V AC |
| Changeover Type | Manual |
| Bulb Diameter | 3/8 in |
| Defrost Termination | 40 to 110 deg F |
| Temperature Control Range | 40 to 110 deg F |
| Minimum Control Temperature | 40 deg F |
| Enclosure Material | Aluminum |
| Compatible System Type | All FEP Heaters |
| Enclosure NEMA Rating | 7 |
| Number of Poles | 2 |
| Enclosure Color | Gray |
| Temperature Scale | Fahrenheit, Celsius |
| Hazardous Location Class | 1C/1D/2E/2F/2G |
| Number of Heating Stages | 1 |
| Overall Depth | 4-1/2 in |
| Temperature Sensitivity | +/-4 deg F |
| Overall Width | 6-3/8 in |
| Number of Cooling Stages | 1 |
| Sensor Location | Remote |
| Full Load Amps @ 240V AC | 10 A |
| Full Load Amps @ 120V AC | 13.8 A |
| Overall Height | 5-5/8 in |
| Differential Type | Adjustable |
| Capillary Length/Bulb Diameter | 5 1/4 in Capillary, 4 3/4 in x 5/16 in Bulb |
| Switch Type/Action | Open, Close, DPDT on Rise |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
