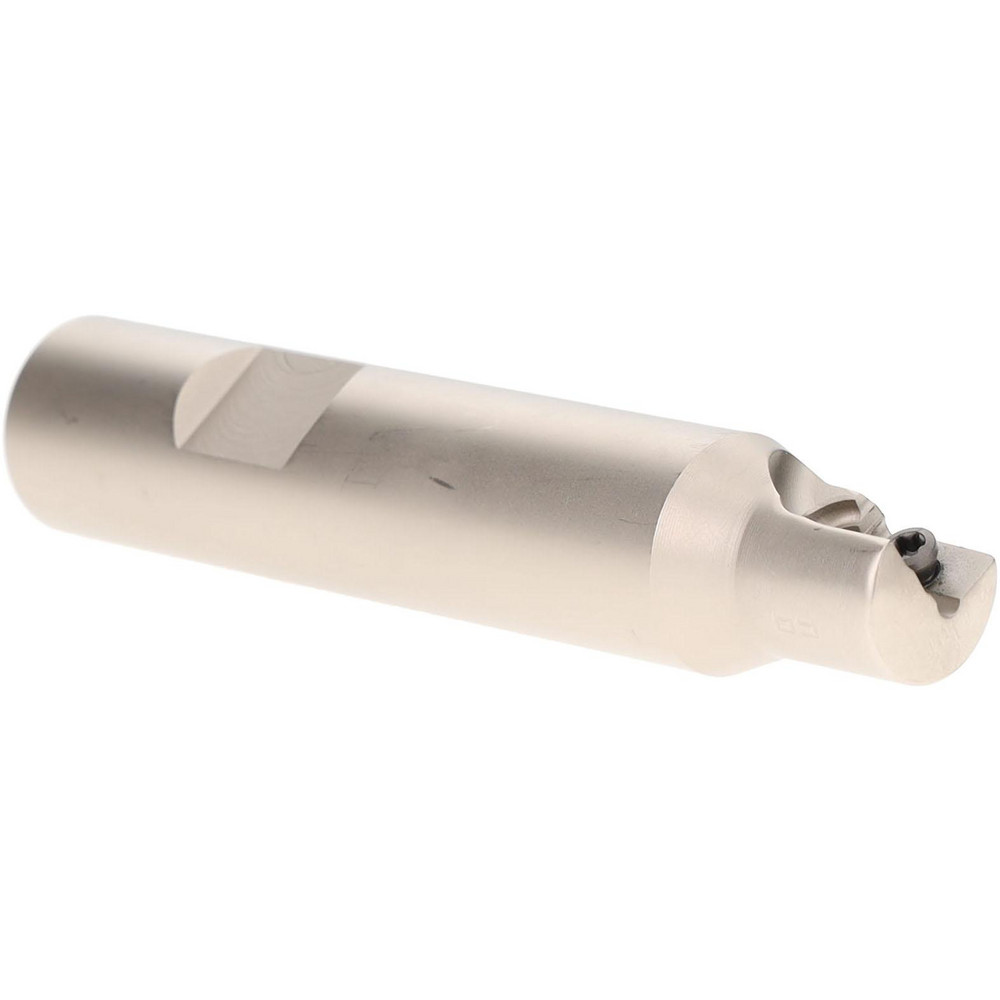

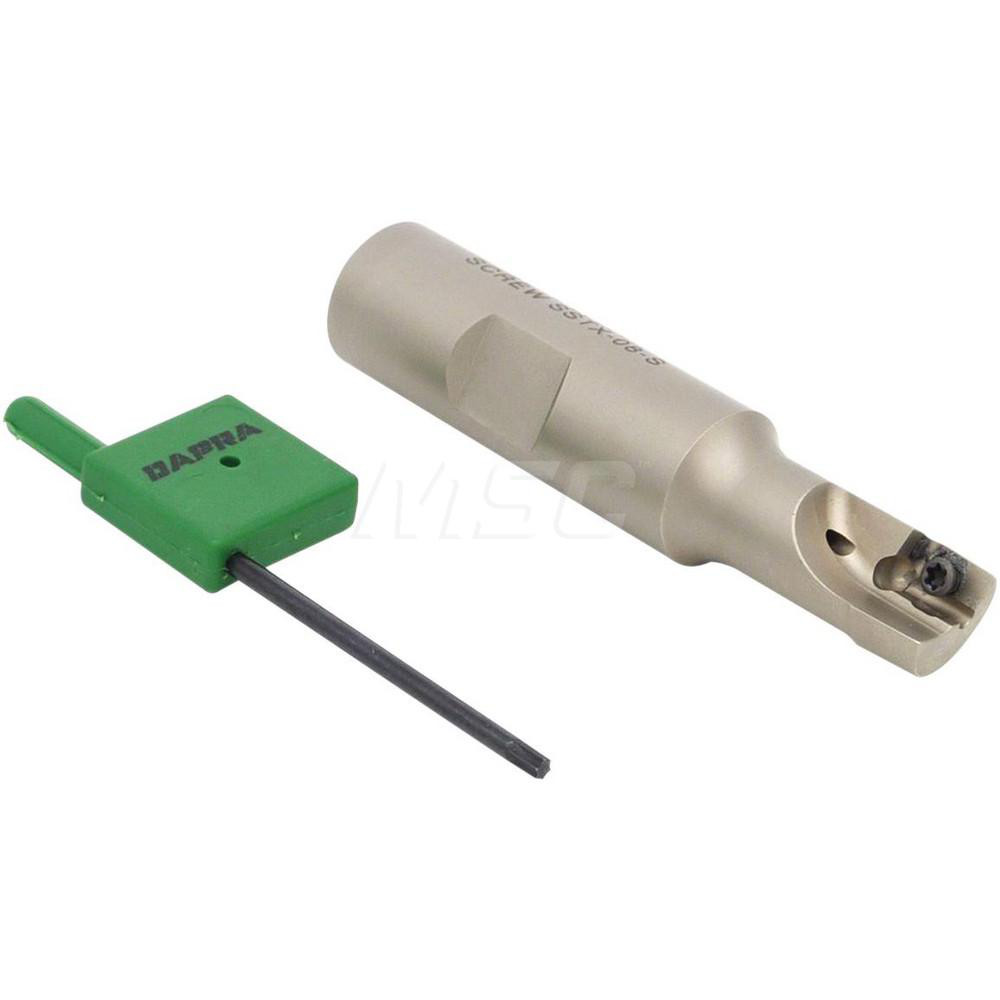

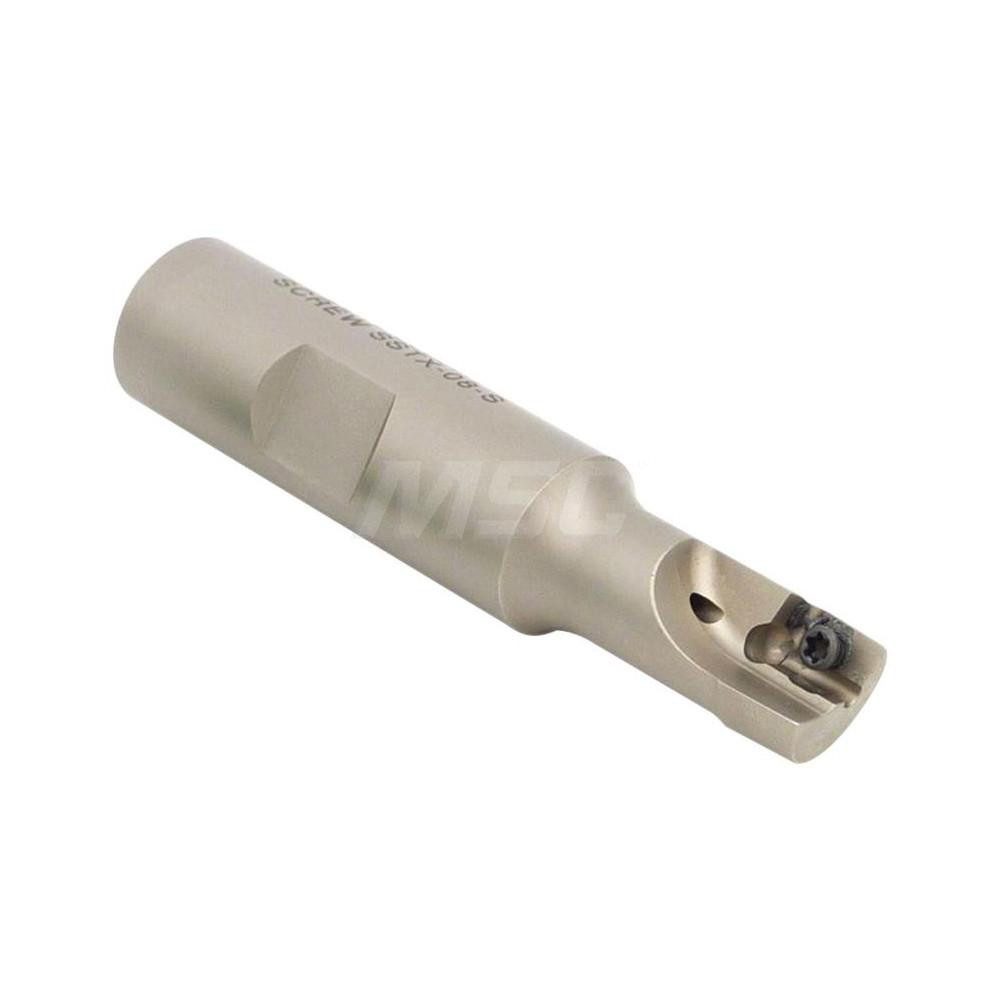

Uses (1) APET 1003..;XPET 1003.. Insert, 2-3/4" OAL
| Cutting Diameter | 1/2 |
|---|---|
| Overall Length (Decimal Inch) | 2.7500 |
| Overall Length (Inch) | 2-3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.3500 |
| Cutter Style | SSEM |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Insert Holding Method | Screw |
| Tool Material | Steel |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 1.7800 |
| Head Length (Decimal Inch) | 0.97 |

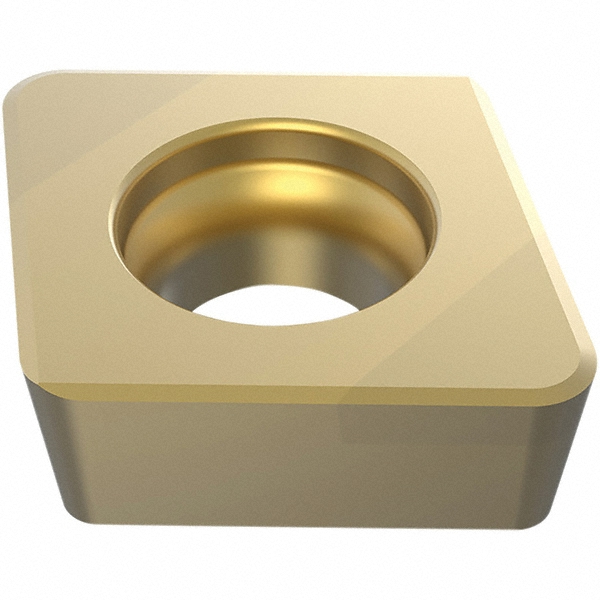

| Insert Compatibility | APET 1003..; XPET 1003.. |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 1 |
| Usable Length (Decimal Inch) | 0.9720 |
| Number Of Cutter Inserts | 1 |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 76628510 |
