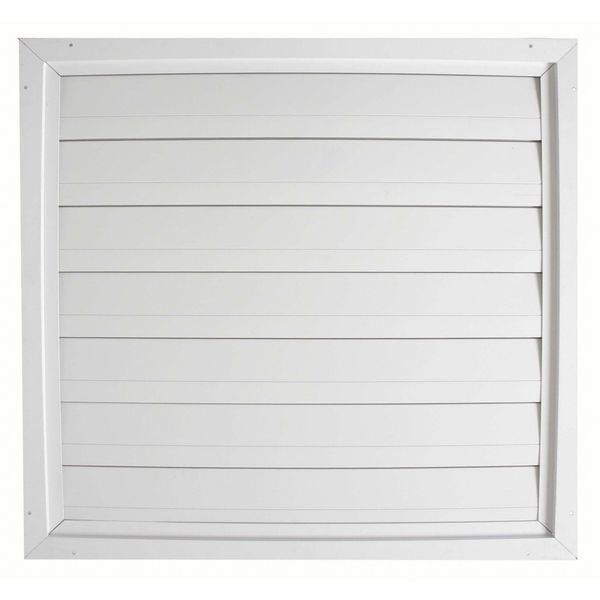

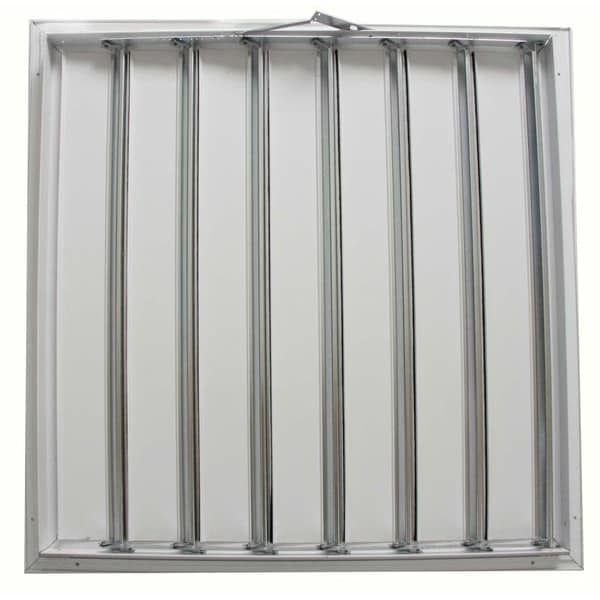

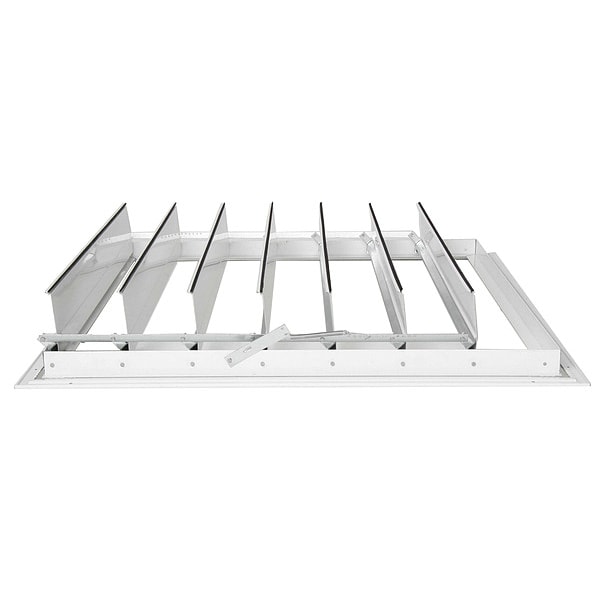

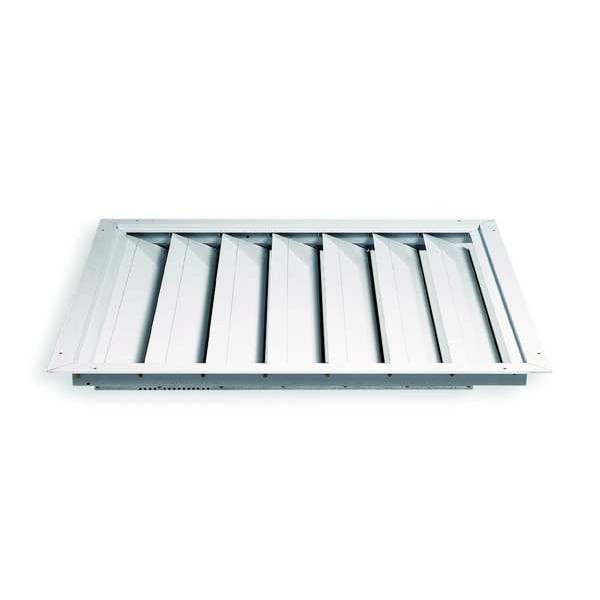

48 in 50"H-W 4.5"L Alu Ceiling Shutter Dampr, 48 in x 48 in, Aluminum
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | 50"H-W 4.5"L Alu Ceiling Shutter Dampr |
| Shutter Mounting Position | Horizontal |
| Shutter Mounting Location | Ceiling |
| Shutter Construction Material | Extruded Aluminum Frame and G-90 Galvanized Tie Rods |
| Shutter Free Area | 13.224 sq ft |
| Shutter Opening Required | 48 in x 48 in |
| Shutter Overall Size | 50 in x 50 in |
| Fits Fan Dia. | 48 in |
| Blade Material | Aluminum |
| Max. Velocity | 2250 FPM |
| Type | Gravity Operated, Single Panel |
| Width | 50 in |
| Shutter Overall Square | 23" |
| Number of Panels | 1 |

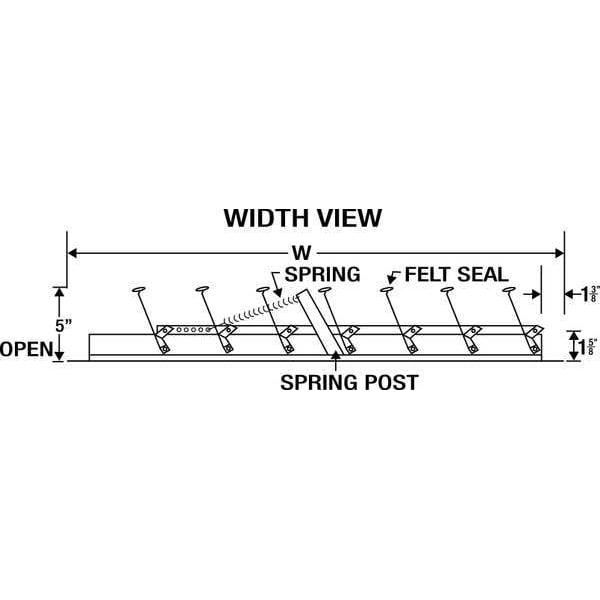

| Open Depth | 5 in |
| Flange Width | 1-3/8 in |
| For Use With | 48 in Whole House Fans |
| Frame Depth | 1-5/8 in |
| Mounting Hole Size | Prepunched |
| Shutter Item | Whole House Fan Premium Ceiling Shutter |
| Length | 50 in |
| Includes | Counterbalanced Louvers with Felted Edges |
| Mounting Position | Vertical, Horizontal |
| Overall Height | 50 in |
| Overall Width | 50 in |
| Color | White |
| Overall Length | 4-1/2 in |
| Free Area | 13.2 sq ft |
| Counterbalanced | Yes |
| Rough Opening Length | 48 in |
| Seal Material | Not Applicable |
| For Nominal Duct Diameter | Not Applicable |
| Closure Velocity Rating | 2,500 fpm |
| Airflow Direction | Horizontal |
| Frame Material | Aluminum |
| Maximum Air Velocity | 2,250 fpm |
| Fits Fan Diameter | 48 in |
| ACMA Leakage Class | Not Applicable |
| Rough Opening Shape | Square |
| Rough Opening Diameter | 48 in |
| Blade Type | Flat Blade |
| Switch Action | Normally Closed |
| Pressure Drop @ 1000 fpm (AMCA 5.2) | Not Applicable |
| Damper Finish | Baked Enamel |
| Rough Opening Width | 48 in |
| Blade Orientation | Parallel Blades |
| For Duct Shape | Not Applicable |
| Single Acting/Double Acting | Single Acting |
| Maximum Pressure | 1 in wc |
| Maximum Ambient Temperature | 180 Degrees F |
| Flange Type | Front Flange |
| Connection Type | Not Applicable |
| Fusible Link Temperature | Not Applicable |
| Bushing Material | Stainless Steel |
| Mounting Style | Flush Mount |
| Blade Seal Material | Felt |
| Tie-Rod Material | Tie Rods, Galvanized Steel Frame |
| Damper Type | Dynamic |
| Frame Less Flange | 48 |
| Blade Material Thickness | 26 ga |
| For Fuel Type | Not Applicable |
| Frame Material Thickness | 0.1 in |
| Mounting Hole Diameter | 1/4 in |
| Overall Diameter | Not Applicable |
| Closure Type | Spring |
| Opening Type | Spring |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
