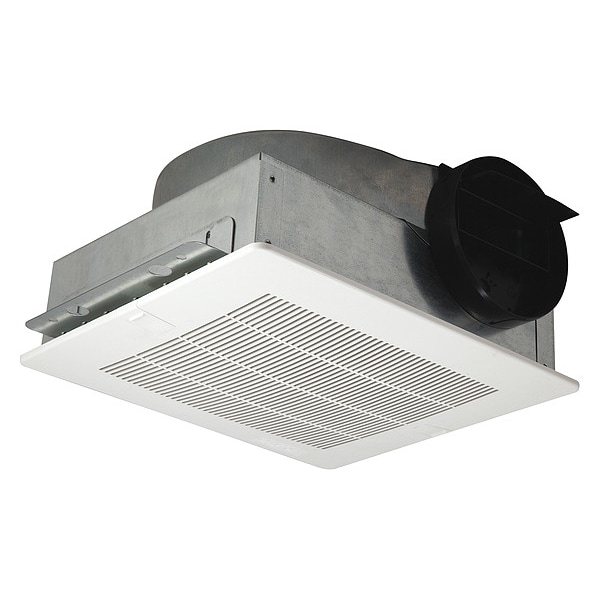

BthExh Fn, 6In Duct Dia, Galv Steel, 115 V
| Includes | Backdraft Damper Mounting brackets |
|---|---|
| Phase | 1 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Lighted | Without Light |
| Heater | Without Heater |
| Standards | UL/cUL 507 |
| Grille Color | White |
| Grille Material | Polystyrene |
| Grille Length | 14-7/8 in |
| Item | Bath Exhaust Fan |
| Motor Insulation | Class B |
| Exhaust Airflow @ 0.250 in SP | 191 cfm |
| Nameplate Voltage | 115 V AC |
| Overall Depth | 13-7/8 in |
| Noise Level @ 0.000 in SP @ 5 ft | 3.5 sones |
| Discharge Direction | Horizontal |
| Includes Grill | Yes |
| Noise Level @ 0.125 in SP @ 5 ft | 4 sones |
| Frequency | 60 Hz |
| Housing Finish | Galvanized |
| Wattage | 172 W |
| Maximum Noise Level | 5.5 sones |
| Blower Wheel Curve | Forward |
| Grille Finish | Polystyrene |
| Overall Width | 11-1/2 in |
| Full Load Current | 2.2 A |
| Duct Shape | Round |
| Exhaust Airflow @ 0.100 in SP | 195 cfm |
| Sensor Type | None |
| Noise Level @ 0.250 in SP @ 5 ft | 4.5 sones |
| Blower Wheel Material | Polypropylene |
| Vent Design | Ducted |
| For Cut-Out Width | 11-3/4 in |
| Profile Height Family | Medium |
| Includes Light Bulbs | No |
| Maximum Airflow | 197 cfm |
| For Cut-Out Length | 14-1/8 in |
| Profile Width Family | Single-Wide |
| Motor Speed | 1,100 RPM |
| Overall Height | 7 in |
| Noise Level @ 0.100 in SP @ 5 ft | 5.5 sones |
| Exhaust Airflow @ 0.000 in SP | 197 cfm |
| Duct Diameter | 6 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
