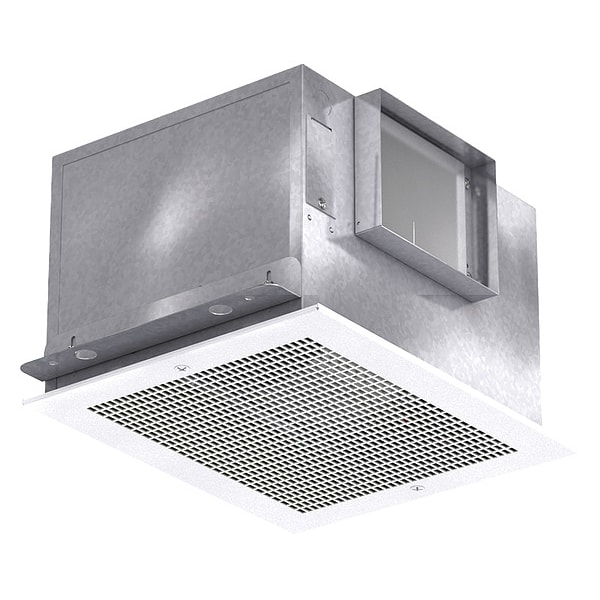

BthExh Fn, 8In Duct Dia, Gal Steel, 120 V
| Includes | Backdraft Damper, Grille, Mounting Brackets, Vari-Green EC Motor |
|---|---|
| Phase | 1 |
| Housing Material | Steel |
| Number of Speeds | 2 |
| Lighted | Without Light |
| Heater | Without Heater |
| Grille Length | 19-3/8 in |
| Grille Material | Aluminum |
| Standards | AMCA, UL/cUL 507 |
| Motor Type | Electronically Commutated |
| Motor Insulation | Class B |
| Item | Bath Exhaust Fan |
| Grille Width | 16-3/8 in |
| Motor Speed | 1,800 RPM |
| Sensor Type | None |
| Noise Level @ 0.250 in SP @ 5 ft | 9 sones |
| Full Load Current | 0.96 A, 3.39 A |
| Overall Depth | 18 in |
| Profile Height Family | High |
| Exhaust Airflow @ 0.100 in SP | 685 cfm |
| Noise Level @ 0.125 in SP @ 5 ft | 9 sones |
| Frequency | 60 Hz |
| Noise Level @ 0.100 in SP @ 5 ft | 9.5 sones |
| Profile Width Family | Single-Wide |
| Overall Width | 14-3/8 in |
| Overall Height | 14-1/2 in |
| Exhaust Airflow @ 0.250 in SP | 327 cfm, 656 cfm |
| Mounting Orientation | Horizontal |
| Includes Grill | Yes |
| Vent Design | Ducted |
| Wattage | 230 W |
| For Cut-Out Length | 14-3/4 in |
| Includes Light Bulbs | No |
| Motor Horsepower | 0.25 HP |
| Maximum Noise Level | 11.1 sones |
| Blower Wheel Curve | Forward |
| For Cut-Out Width | 18-3/8 in |
| Maximum Airflow | 752 cfm |
| Exhaust Airflow @ 0.000 in SP | 709 cfm |
| Noise Level @ 0.000 in SP @ 5 ft | 11.1 sones |
| Blower Wheel Material | Polypropylene |
| Duct Width | 8 in |
| Duct Height | 8 in |
| Housing Finish | Galvanized |
| Discharge Direction | Horizontal, Vertical |
| Nameplate Voltage | 120 V AC |
| Duct Shape | Rectangular |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
