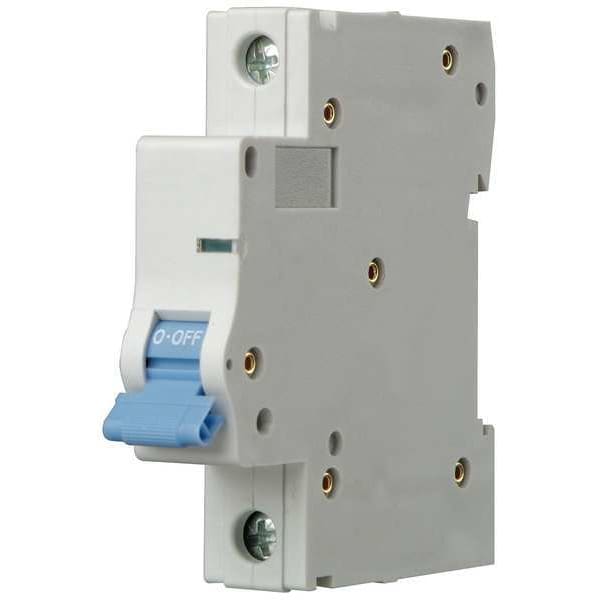

Circuit Breaker, NDB2-63 D2/1 Series, 2A, 1 Pole, 277V AC, 5kA at 277V AC, D Curve
| Item | Circuit Breaker |
|---|---|
| Series | NDB2-63 D2/1 |
| Amps | 2A |
| Number of Poles | 1 |
| AC Voltage Rating | 277V AC |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 5kA at 277V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Screw Clamp |
| Width | 0.71 in |
| Depth | 2.91 in |
| Height | 3.21 in |
| DC Voltage Rating | Not Rated |
| Curve Type | D |
| Min. Wire Size | 14 AWG |
| Application | Supplemental Protection |
| Max. Wire Size | 4 AWG |
| Standards | UL Recognized for US & Canada; CE |
| Meets UL Type | UL 1077 |
| Shop By | Closeouts |
| Length (Straight Wireway) | 3.21 in |
| Length | 3.21 in |
| Mounting | Din Rail |
| Package Quantity | 1 |
