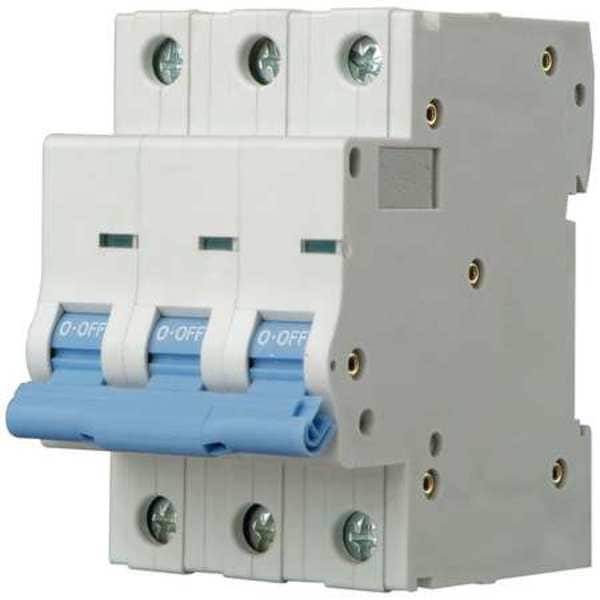

Circuit Breaker, NDB2-63 D32/3 Series, 32A, 3 Pole, 480V AC, 7.5kA at 480V AC, D Curve
| Item | Circuit Breaker |
|---|---|
| Series | NDB2-63 D32/3 |
| Amps | 32A |
| Number of Poles | 3 |
| AC Voltage Rating | 480V AC |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 7.5kA at 480V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Screw Clamp |
| Width | 2.13 in |
| Depth | 2.91 in |
| Height | 3.21 in |
| DC Voltage Rating | Not Rated |
| Curve Type | D |
| Min. Wire Size | 14 AWG |
| Application | Supplemental Protection |
| Max. Wire Size | 2 AWG |
| Standards | UL Recognized for US & Canada; CE |
| Meets UL Type | UL 1077 |
| Length (Straight Wireway) | 3.21 in |
| Mounting | Din Rail |
| Length | 3.21 in |
| Package Quantity | 1 |
