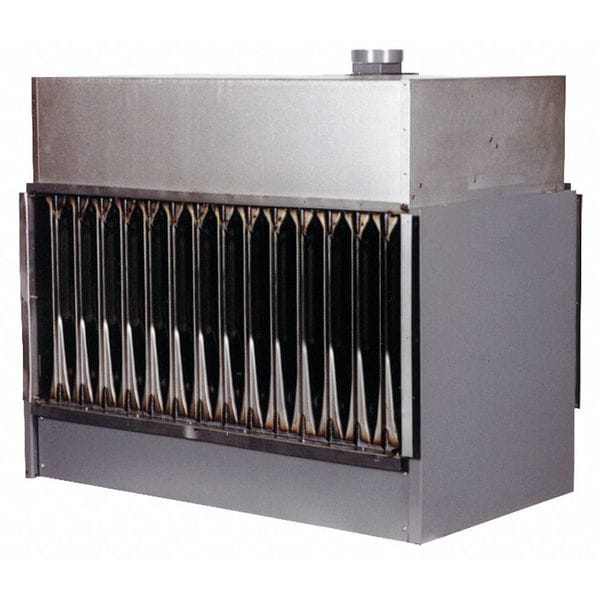

Gas-Fired Duct Furnace, Natural Gas, Power Vent Type, Fan Forced
| Item | Gas-Fired Duct Furnace |
|---|---|
| Gas Type | NG |
| BtuH Input | 400,000 |
| BtuH Output | 320,000 |
| Ignition Type | Direct Spark |
| Air Flow | 9,877 cfm |
| Heater Voltage | 115 V |
| Height | 37-3/4 in |
| Width | 48-1/8 in |
| Installation Height | 8 ft |
| Ignition System | Direct Spark |
| Gas Connection | 3/4 in |
| Burner Air Inlet Size | 6 in |
| Indoor Air Discharge Width | 45-3/4 in |
| Primary Heat Exchanger Material | Aluminized Steel |
| CFM @ 65(F) Rise | 4,500 cfm |
| Indoor Air Discharge Height | 19 in |
| Full Load Amps | 1.9 A |
| Standards | ETL Certified |
| Hz | 60 |
| Service Access Location | Bottom |
| Depth | 37 in |
| Flue Dia. | 6 in |
| CFM @ 80(F) Rise | 3,600 cfm |
| Manufacturers Warranty Length | 1 yr |
| Max. External SP | 0.9 in WC |
| Air Temp. Rise | 30 Degrees F |
| Vent Type | Power |
| Includes | Additional Safety Features of Fan Time Delay, Air Flow Prove Switch, and Terminal Block Wiring |
| Overall Height | 37-3/4 in |
| Features | Clamshell Style Heat Exchanger |
| Overall Width | 48-1/8 in |
| Gas Connection Size | 3/4 in |
| Air Flow @ 65(F) Rise | 4,500 cfm |
| Combustion Type | Open Combustion |
| Heating Capacity Output | 320,000 BtuH |
| Flue Diameter | 6 in |
| Air Flow @ 80(F) Rise | 3,600 cfm |
| Frequency | 60 Hz |
| Required Air Flow | 3,704 cfm |
| Air Temperature Rise | 30 Degrees F |
| Heating Method | Fan Forced |
| Fuel Type | Natural Gas |
| Overall Depth | 37 in |
| Gas Connection Type | Male NPT |
| Heat Exchanger Gauge | 20 ga |
| Furnace Type | Power Vented |
| Maximum Amperage | 1.9 A |
| Mounting Height | 8 ft |
| Thermostat Included | No |
| Venting | Vented |
| Furnace Type, Primary Heat Exchanger Material | Power Vented, Aluminized Steel |
| Heating Capacity Input | 400,000 BtuH |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
