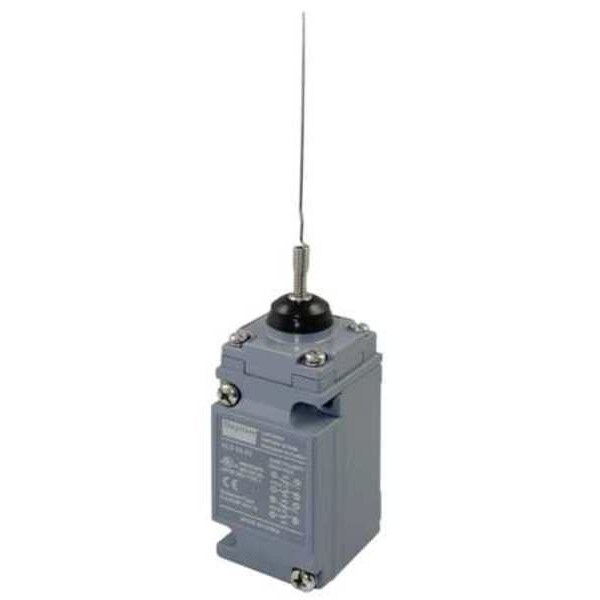

Interruptor de límite de servicio pesado, Bigote de gato, Palo oscilante, DPDT, 10A @ 600V AC, Ubicación del actuador: Superior.
| Item | Heavy Duty Limit Switch |
|---|---|
| Basic Actuator Style - Limit Switch | Wobble Stick |
| Actuator Style - Limit Switch | Cat Whisker, Wobble Stick |
| Contact Form- Switches | DPDT |
| Actuator Location - Limit Switch | Top |
| AC Contact Rating - Limit Switch | 10 A @ 600 V |
| DC Contact Rating - Limit Switch | 10 A @ 600 V |
| Body Style - Limit Switch | Standard |
| Mounting - Limit Switch | Surface |
| Boot Sealed Actuator (Limit Switch) | No |
| Depth | 1.76 in |
| Mounting Hole Spacing - Limit Switch | 1.46 in x 1.16 in |
| Series | Dayton |
| Movement | Omnidirectional |
| Mounting Hole Pattern - Limit Switch | 2 Hole (Diagonal) |
| Operating Temp. Range | -20 to 185 deg F |
| Voltage Rating | 600VAC/DC |
| Width | 1.65 in |
| NEMA Rating | 13, 3, 4, 4X, 6P |
| Basic Actuator Style (Limit Switch) | Wobble Stick |
| Body Depth - Limit Switch | 1.74 in |
| Amps | 10 |
| Limit Switch Style | Heavy Duty Limit Switch |
| Body Style (Limit Switch) | Standard |
| Wiring Entry | 1/2 in NPT |
| Height | 9.1 in |
| Contact Form | DPDT |
| Actuator Style | Cat Whisker |
| Stem Thread - Limit Switch | No Stem |
| DC Contact Rating | 10 A @ 600 V |
| Actuator Style (Limit Switch) | Wobble Stick, Cat Whisker |
| Travel | Maximum Pre-Travel N/A, Minimum Over-Travel N/A |
| Electrical Connection | Screw Terminals |
| Actuator Location (Limit Switch) | Top |
| Number of Poles | 2 |
| Body Height - Limit Switch | 3.35 in |
| AC Contact Rating | 10 A @ 600 V |
| Boot Sealed Actuator - Limit Switch | No |
| Standards | CE, CSA, UL |
| Body Width - Limit Switch | 1.65 in |
| Operating Force | 7.08 in-oz |
| IP Rating | 67 |
| Actuator Location | Top |
| Mounting Hole - Limit Switch | (2) 0.20 in dia |
| Contact Form - Limit Switch | DPDT |
| NEMA Enclosure Rating | 4, 13, 6P, 3, 4X |
| Operating Torque - Minimum | Not Applicable |
| Number of Mounting Holes | 2 |
| Directional Movement | Omnidirectional |
| Arm Length - Maximum | Not Applicable |
| Body Depth | 1.74 in |
| Operating Temperature - Minimum | -20 deg F |
| Overtravel | Not Applicable |
| Mounting Style | Surface |
| Operating Temperature - Maximum | 185 deg F |
| Operating Torque - Maximum | 0.44 in-lb |
| Arm Length - Minimum | Not Applicable |
| Boot Sealed Actuator | No Boot Included |
| Mounting Hole Vertical Center to Center Distance | 37 mm |
| Mounting Hole Horizontal Center to Center Distance | 29 mm |
| Wireless Network Interface | Not Applicable |
| Pretravel | Not Applicable |
| Body Width | 1.65 in |
| Action | A |
| Body Height | 3.35 in |
| Mounting Hole Diameter | 0.2 in |
| Package Quantity | 1 |
