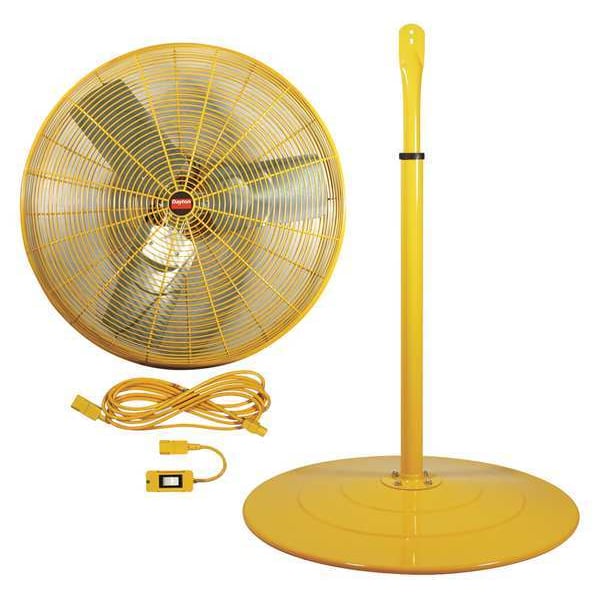

High Visibility High Visibility Industrial Fan, Pedestal Mount, 24 in Blade Dia, 115V
| Blade Diameter | 24 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.3333 HP |
| Air Flow | 3,800/6,100 cfm |
| Drive Type | Direct Drive |
| Blade Material | Mill Finish Aluminum |
| Sound Level | 74 dBA |
| Item | High Visibility Industrial Fan |
| Application | Spot Cooling and People Cooling |
| Environmental Applications | Industrial |
| Motor Type | Permanent Split Capacitor |
| Max. Depth | 14-1/4 in |
| Hz | 60 |
| Bearing Type | Ball |
| Mobile/Stationary | Stationary |
| Standards | UL, cUL, OSHA |
| Width | 33 in |
| Motor RPM | 1,075/750 RPM |
| Max. Ambient Temp. | 104 deg F |
| Housing Material | Steel |
| Motor Insulation | Class B |
| Air Velocity @ 10 Ft. | 940/660 fpm |
| Fan Style | High Visibility |
| Number of Blades | 3 |
| Thermal Protection | Automatic |
| CFM/Watt | 24.9/27.2 |
| Air Velocity @ 60 Ft. | 120/85 fpm |
| Fan Accessory Style | High Visibility |
| Guard Material | Steel |
| Shaft Dia. | 1/2 in |
| Assembled | Yes |
| Outside Dia. | 33 in |
| CFM Low | 3,800 |
| Height | 33 in |
| Fan Mounting Location | Pedestal |
| Motor Enclosure | Totally Enclosed Air Over |
| Wire Guard Finish | Polyester Powder Coated |
| Air Velocity @ 20 Ft. | 520/365 fpm |
| Air Velocity @ 40 Ft. | 265/185 fpm |
| CFM High | 6,100 |
| Includes | 15 ft. Extension Cord, 3 Position Drop Cord Switch, (1) 1ZCP3 Floor Pedestal |
| Amps | 3.28/2.29 |
| Fan Cord Length | 2 ft |
| RPM | 1075/750 |
| Assembly Required | No |
| Wheeled Base | Stationary |
| Fan Housing Material | Steel |
| Depth | 14-1/4 in |
| Material | Steel |
| Color | Yellow |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
