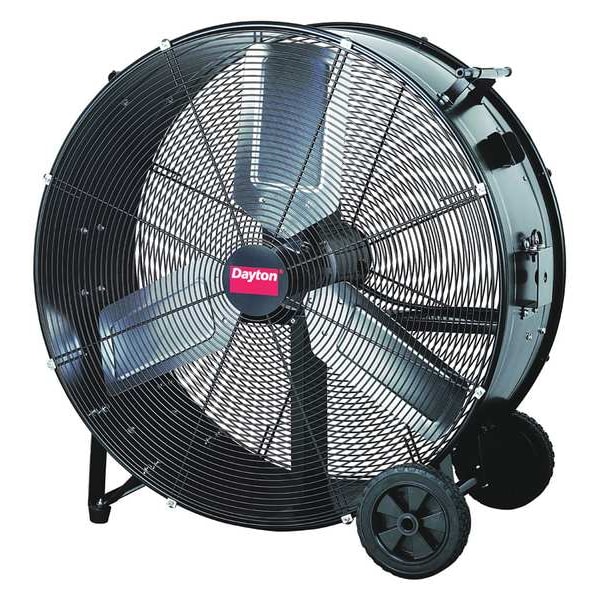

Light Duty Industrial Fan, 36 in Blade Dia, Non-Oscillating, 115VAC, 9200/12550 CFM
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Diameter | 36 in |
| Oscillation | Non-Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 9200/12,550 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 75 dBA |
| Item | Industrial Fan |
| Standards | UL/cUL 507, OSHA 1910.212 |
| Shaft Dia. | 5/8 in |
| Air Velocity @ 20 Ft. | 372/261 fpm |
| Motor RPM | 750/650 RPM |
| Fan Accessory Style | Standard |
| Outside Dia. | 38-1/2 in |
| Max. Depth | 20-1/2 in |
| Air Velocity @ 40 Ft. | 235/164 fpm |
| Assembled | Partially Assembled |
| Housing Material | Steel |
| Environmental Applications | Industrial |
| CFM Low | 9,200 |
| Mobile/Stationary | Mobile |
| Application | Spot Cooling and People Cooling |
| Max. Ambient Temp. | 104 deg F |
| Motor Type | Permanent Split Capacitor |
| Motor Enclosure | Open Air Over |
| Fan Style | Light Duty |
| Number of Blades | 3 |
| Includes | Cord Wrap, Plastic and Rubber Casters |
| Watts | 625/550 W |
| Hz | 60 |
| CFM High | 12,550 |
| Air Velocity @ 60 Ft. | 179/125 fpm |
| Height | 39 in |
| Fan Mounting Location | Floor |
| Wire Guard Finish | Powder Coated |
| Bearing Type | Ball |
| Thermal Protection | Automatic Reset |
| Motor Insulation | Class B |
| Guard Material | Steel |
| Width | 38-1/2 in |
| RPM | 750/650 |
| Fan Cord Length | 10 ft |
| Wheeled Base | Mobile |
| Assembly Required | Yes |
| Depth | 20-1/2 in |
| NEMA Plug Configuration | 5-15p |
| Fan Housing Material | Steel |
| Wheel Dia. | 7 in |
| Color | Black |
| Height Adjustment | Fixed Height |
| Amps | 5.2/4.9 |
| Wheel Material | Plastic/Rubber |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
