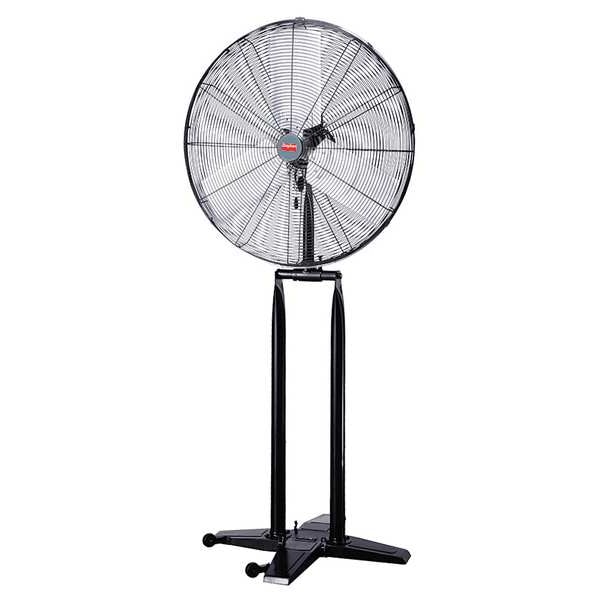

Light Duty Industrial Fan, Foldable Pedestal Mount, 30 in Blade Dia, 120V, 7,200/8,130 cfm
| Blade Diameter | 30 in |
|---|---|
| Oscillation | Oscillating |
| Number of Speeds | 2 |
| Voltage | 120V |
| Phase | 1 |
| Motor HP | 0.25 HP |
| Air Flow | 7,200/8,130 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 74 dBA |
| Item | Industrial Fan |
| Application | Spot Cooling and People Cooling |
| Thermal Protection | Automatic Reset |
| Height | 74-1/4 in |
| Environmental Applications | Industrial |
| Air Velocity @ 20 Ft. | 510 fpm |
| Fan Style | Light Duty |
| Bearing Type | Sealed Ball |
| Mobile/Stationary | Stationary |
| Fan Accessory Style | Standard |
| Motor Enclosure | Totally Enclosed Air Over |
| CFM/Watt | 38.7 |
| Width | 33 in |
| CFM Low | 7,200 |
| Standards | UL/CUL/OSHA |
| Hz | 60 |
| Includes | Pedestal Base and Column, (2) 2-1/2" Diameter Plastic Casters, Hex Key |
| Max. Depth | 32 in |
| Motor RPM | 1,100/900 RPM |
| Air Velocity @ 40 Ft. | 200 fpm |
| Watts | 280/220 W |
| CFM High | 8,130 |
| Fan Mounting Location | Pedestal |
| Wire Guard Finish | Chrome Plated |
| Max. Ambient Temp. | 104 deg F |
| Housing Material | Steel |
| Guard Material | Steel |
| Air Velocity @ 10 Ft. | 745 fpm |
| Motor Insulation | Class B |
| Assembled | Yes |
| Number of Blades | 3 |
| Shaft Dia. | 15 mm |
| Motor Type | Permanent Split Capacitor |
| Fan Housing Material | Steel |
| Wheel Dia. | 2 in |
| NEMA Plug Configuration | 5-15p |
| Color | Black |
| Wheeled Base | Mobile |
| Height Adjustment | Fixed Height |
| Wheel Material | Plastic |
| Assembly Required | No |
| Amps | 2.8/1.9 |
| Fan Cord Length | 9 ft |
| Depth | 32 in |
| RPM | 1100/900 |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
