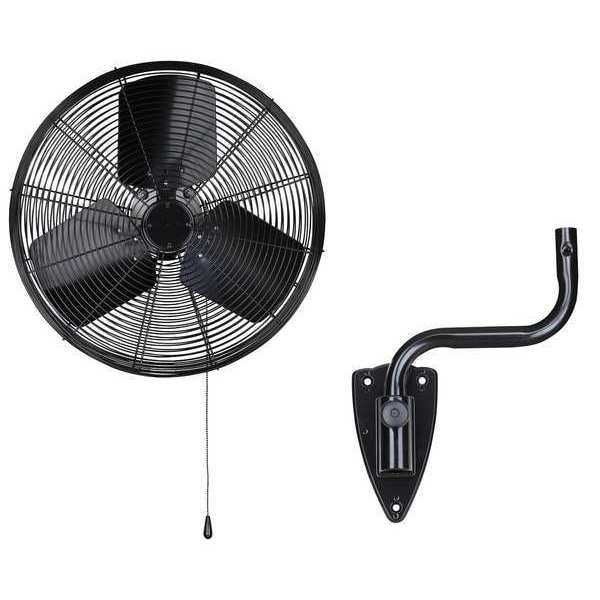

Light Duty Industrial Fan, Wall Mount, 18 in Blade Dia, 120V, 4,000/5,700 cfm, Oscillating
| Blade Diameter | 18 in |
|---|---|
| Oscillation | Oscillating |
| Number of Speeds | 2 |
| Voltage | 120V |
| Phase | 1 |
| Motor HP | 0.2 HP |
| Air Flow | 4,000/5,700 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 70/66 dBA |
| Item | Industrial Fan |
| Watts | 220/175 W |
| Application | Spot Cooling and People Cooling |
| Number of Conductors | 3 |
| Width | 20-1/2 in |
| Motor Enclosure | Totally Enclosed Air Over |
| Guard Material | Steel |
| Includes | Wall Bracket and Secondary Safety Support Cable |
| Fan Style | Light Duty |
| Hz | 60 |
| Height | 37 in |
| Thermal Protection | Automatic Reset |
| Standards | cULus Listed, OSHA compliant wire guards |
| Motor Insulation | Class B |
| Requires | Assembly |
| Environmental Applications | Industrial |
| Mobile/Stationary | Stationary |
| CFM/Watt | 26.8/27 |
| Fan Mounting Location | Wall |
| Full Load Amps | 1.85 |
| Air Velocity @ 40 Ft. | 142/132 fpm |
| Air Velocity @ 20 Ft. | 272/230 fpm |
| Max. Depth | 24 in |
| CFM Low | 4,000 |
| Air Velocity @ 10 Ft. | 475/396 fpm |
| NEMA Plug Configuration | 5-15p |
| CFM High | 5,700 |
| Fan Accessory Style | Standard |
| Wire Guard Finish | Gloss Powder Coated |
| Assembled | No |
| Motor RPM | 1,100/925 RPM |
| Max. Ambient Temp. | 104 deg F |
| Bearing Type | Ball |
| Housing Material | Steel |
| Motor Type | Permanent Split Capacitor |
| Number of Blades | 3 |
| Shaft Dia. | 12 mm |
| Fan Housing Material | Steel |
| Color | Black |
| Wheeled Base | Stationary |
| Amps | 2.0/1.5 |
| Height Adjustment | Fixed Height |
| Fan Cord Length | 9 ft |
| Depth | 24 in |
| RPM | 1100/925 |
| Assembly Required | Yes |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
