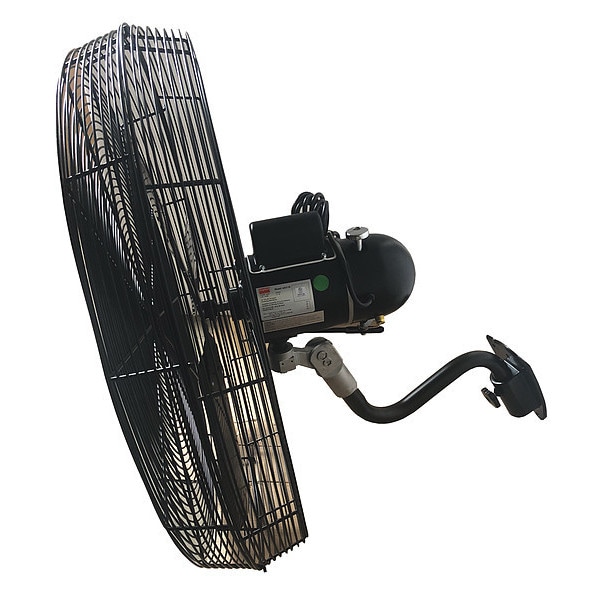

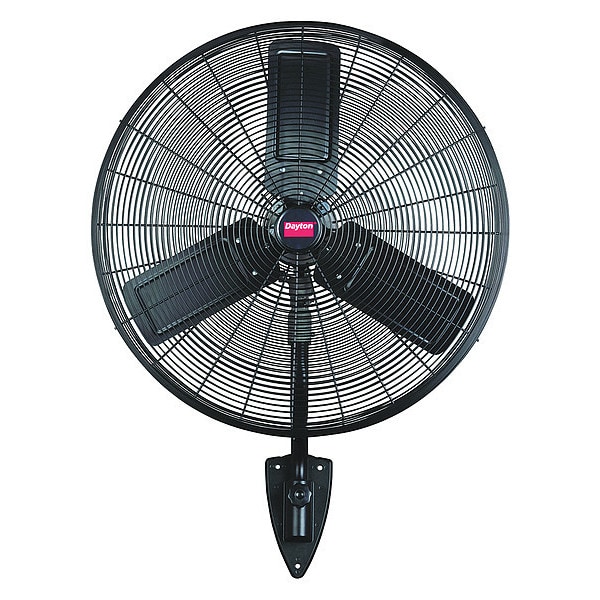

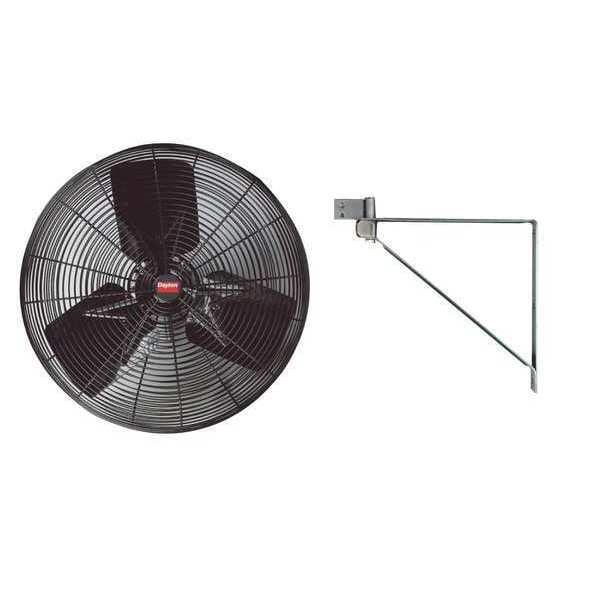

Light Duty Industrial Fan, Wall Mount, 30 in Blade Dia, 115V, 7,260/8,200 cfm, Oscillating
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Diameter | 30 in |
| Oscillation | Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 7,260/8,200 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 77 dBA |
| Item | Industrial Fan |
| CFM/Watt | 18.22 |
| CFM High | 8,200 |
| Motor Enclosure | Totally Enclosed Air Over |
| Fan Accessory Style | Standard |
| Mobile/Stationary | Stationary |
| Height | 43 in |
| Guard Material | Steel |
| Includes | Wall Bracket and Secondary Safety Support Cable |
| Max. Ambient Temp. | 104 deg F |
| Housing Material | Steel |
| Fan Style | Light Duty |
| Max. Depth | 24-1/4 in |
| Standards | cULus Listed, OSHA compliant wire guards |
| Air Velocity @ 10 Ft. | 994/817 fpm |
| NEMA Plug Configuration | 5-15p |
| Watts | 450/369 W |
| Thermal Protection | Automatic Reset |
| Motor Type | Permanent Split Capacitor |
| Requires | Assembly |
| Motor RPM | 1,100/850 RPM |
| Fan Mounting Location | Wall |
| Shaft Dia. | 5/8 in |
| Air Velocity @ 40 Ft. | 261/180 fpm |
| CFM Low | 7,260 |
| Number of Conductors | 3 |
| Width | 33 in |
| Environmental Applications | Industrial |
| Hz | 60 |
| Wire Guard Finish | Gloss Powder Coated |
| Number of Blades | 3 |
| Motor Insulation | Class B |
| Air Velocity @ 20 Ft. | 610/525 fpm |
| Assembled | No |
| Application | Spot Cooling and People Cooling |
| Bearing Type | Ball |
| Wheeled Base | Stationary |
| Color | Black |
| Amps | 4.2/3.5 |
| Depth | 23-1/4 in |
| Fan Housing Material | Steel |
| RPM | 1100/850 |
| Assembly Required | Yes |
| Height Adjustment | Fixed Height |
| Fan Cord Length | 10 ft |
| Material | Steel |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
