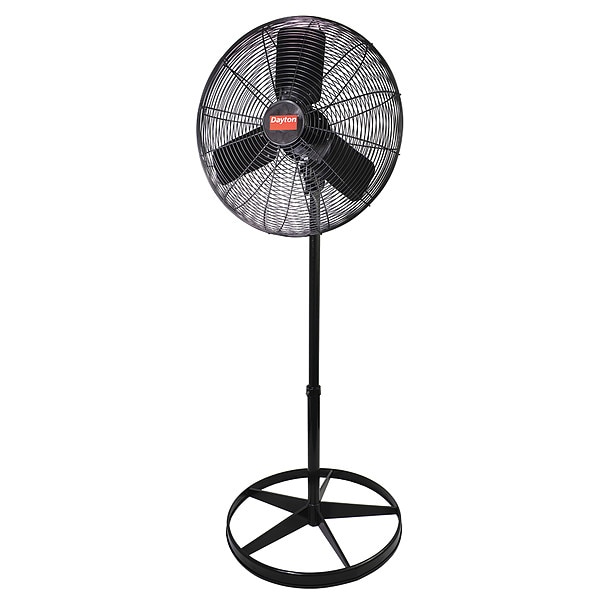

Light Duty Quiet Design Industrial Fan, Pedestal Mount, 24 in Blade Dia, 115V, Oscillating
| Blade Diameter | 24 in |
|---|---|
| Oscillation | Oscillating |
| Number of Speeds | 3 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.25 HP |
| Air Flow | 2,280/4,320/5,030 cfm |
| Drive Type | Direct Drive |
| Blade Material | Steel |
| Sound Level | 69.4/65.1/48.6 dBA |
| Item | Quiet Design Industrial Fan |
| Housing Material | Steel |
| CFM Low | 2,280 |
| Motor Enclosure | Totally Enclosed Air Over |
| Number of Blades | 3 |
| Max. Ambient Temp. | 130 deg F |
| Watts | 250/190/70 W |
| Assembled | No |
| Requires | Assembly |
| Number of Conductors | 3 |
| Shaft Dia. | 1/2 in |
| Standards | ETL/CETL/OSHA |
| CFM High | 5,030 |
| Bearing Type | Ball |
| Thermal Protection | Automatic |
| Air Velocity @ 20 Ft. | 500/350/220 fpm |
| Fan Mounting Location | Pedestal |
| Includes | Pedestal and Assembly Hardware |
| Height | 81 in |
| CFM/Watt | 20.2 |
| Environmental Applications | Industrial |
| Fan Accessory Style | Quiet Design |
| Wire Guard Finish | Polyester Powder Coated |
| CFM Medium | 4,320 |
| Max. Depth | 29-1/2 in |
| Motor RPM | 1,025/880/480 RPM |
| Width | 29-1/2 in |
| Mobile/Stationary | Stationary |
| Fan Style | Light Duty |
| Guard Material | Steel |
| Hz | 60 |
| Motor Insulation | Class A |
| Motor Type | Permanent Split Capacitor |
| NEMA Plug Configuration | 5-15p |
| Application | Spot Cooling and People Cooling |
| RPM | 1025/880/480 |
| Amps | 2.0/1.6/0.6 |
| Assembly Required | Yes |
| Wheeled Base | Stationary |
| Fan Cord Length | 10 ft |
| Depth | 29-1/2 in |
| Fan Housing Material | Steel |
| Material | Steel |
| Color | Black |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
