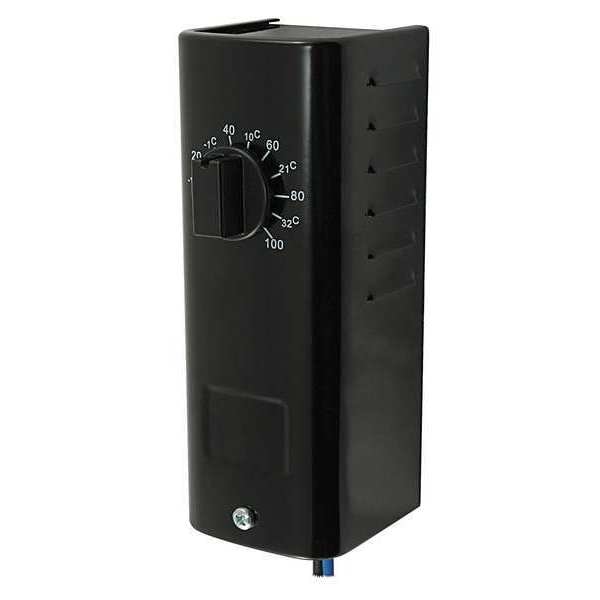

Line Volt Mechanical Tstat, Close on Rise, -10 Degrees to 100 Degrees F, SPST, 120 to 277V AC
| Switch Action | Close on Rise |
|---|---|
| Voltage | 120 to 277V AC |
| Sensor Type | Bi-Metal |
| Differential | 6 Degrees to 8 Degrees F |
| Thermostat Control Range | -10 to 100 deg F |
| Switch Type | SPST |
| Color | Black |
| Width | 2.13 in |
| Height | 5-1/2 in |
| Standards | UL Listed |
| Control Range | -10 to 100 deg F |
| Remote Sensing Capability | No |
| Depth | 2.63 in |
| Item | Line Volt Mechanical Tstat |
| Thermostat Programmable | No |
| Thermostat Heating/Cooling | Cooling |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Thermostat Switch Type | SPST |
| Includes | Contacts that Close on Temperature Rise for Cooling Applications |
| Inductive Amps @ 120V | 13.8 A |
| Remote Sensing Bulb Included | No |
| Inductive Amps @ 240V | 10 A |
| Contact Rating Resistive @ 240V | 22 A |
| Contact Rating Resistive @ 120V | 22 A |
| Full Load Amps @ 120VAC | 15 A |
| Thermostat Voltage | 120 to 277 V AC |
| Number of Switches | 1 |
| Full Load Amps @ 240VAC | 10 A |
| Thermostat Type | Line Voltage |
| Inductive Amps @ 208V | 10 A |
| Application | Cool Only |
| Full Load Amps @ 240V AC | 10 A |
| Enclosure Finish | Powder Coated |
| Enclosure Material | Steel |
| Compatible System Type | Gas or Forced Air Furnaces |
| Minimum Control Temperature | -10 deg F |
| Enclosure NEMA Rating | 1 |
| Temperature Scale | Fahrenheit, Celsius |
| Full Load Amps @ 120V AC | 15 A |
| Overall Height | 5-1/2 in |
| Lead Length | 6 in |
| Stages | 1C |
| Differential Type | Adjustable |
| Number of Poles | 1 |
| Minimum Operating Temperature | -10 deg F |
| Number of Cooling Stages | 1 |
| Overall Width | 2-3/16 in |
| Operating Temperature Range | -10 to 100 deg F |
| Amperage | 22 A |
| Maximum Control Temperature | 100 deg F |
| Enclosure Color | Black |
| Overall Depth | 2-3/16 in |
| Temperature Control Range | -10 to 100 deg F |
| Switch Type/Action | SPST on Rise |
| Temperature Differential | 2 Degrees F |
| Maximum Operating Temperature | 100 deg F |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
